Quick Reference Chart

Models Description Unit Depth Velocity Range (Feet Per Minute) Factory Standard Controls Factory Calibration Accuracy AMCA Certified (Yes/No) Minimum Size Maximum Single Section Larger Multiples Technology Output Signal BAS Input Signal
EAMS Electronic Air Measuring Station 12" 100-2000 Electronic Mass Flow Sensor & Controller
3%
W 12" H 12" 18 Sq Ft Unlimited Electronic Mass Flow 0-10V mA Analog Std. with Bacnet interface included N/A
AMS050 Air Measuring Station with Integral Damper 15" 300-5000 Transducer (LCD Display Optional) Optional 3%
W 6" H 6" W 60" H 72"
Velocity Pressure 0-5 or 0-10VDC (field select) Linear 4-20mA opt. 0-5 VDC (w/AMS070V)
AML3 Air Measuring Louver 4" 275-2024 Free Area Transducer (LCD Display Optional) 3%
W 12" H 12" W 48" H 96"
(consult factory)		 Velocity Pressure 0-5 or 0-10VDC (field select) 4-20mA opt. N/A
AMS Air Measuring Station 9" 300-5000 Transducer (LCD Display Optional) 3%
W 6" H 6" W 48" H 96" 120" x 72" Velocity Pressure 0-5 or 0-10VDC (field select) 4-20mA opt. N/A
AMP Series Air Measuring Probe Kit (retrofit) AMP001, AMP002 & AMP003 2" 400-5000 Transducer (LCD Display Optional) 5%
W 6" H 6" W 60" H 42" Velocity Pressure 0-5 or 0-10VDC (field select) 4-20mA opt. N/A
AMP015 Air Measuring Probe Assembly (retrofit) 2" 400-5000 Transducer (LCD Display Optional) 5%
W 6" H 6" W 60" H 42" Velocity Pressure 0-5 or 0-10VDC (field select) 4-20mA opt. N/A
EFAMS Electronic Fan Inlet Air & Temperature Measuring Station 2" 0-10000 Control Transmitter with LCD Display
3%* Dia. 6" Single Inlet Dia. 84"Single Inlet Dual Inlet Thermal Dispersion Analog 4-20mA or 2-10 VDC w opt. 500 resistor N/A
EAMP Electronic Thermal Dispersion Flow and Temperature Measurement Probe 2" 0-4000 Control Transmitter with LCD Display
2%* W 8" H 8" W 120" H 120 "
(consult factory)		 Thermal Dispersion Analog 4-20mA or 2-10 VDC w opt. 500 resistor N/A
EAMS060 Electronic Air Measuring Station with Low Leakage Damper 18" 100-2000 Electronic Mass Flow Sensor, Controller & Actuator
3%* W 12" H 12" 60W x 72H
with actuator controlled by others		 Electronic Mass Flow 0-10V Analog Std. with Bacnet interface included Analog 4-20mA
IAQ50X Indoor Air Quality damper with Integral Measuring Station 11" 150-2000 Microprocessor Based Control Panel & Actuator
5%* W 10” H 10” W 48” H 84”
(consult factory)		 Pressure Drop 0-10 VDC Analog std. with LON interface included 0-10VDC
AML6 Air Measuring Louver 7" 345-2149 Free Area Transducer (LCD Display Optional) 3%* W 12” H 12” W 48” H 96”
(consult factory)		 Velocity Pressure 0-5 or 0-10VDC (field select) 4-20mA opt. N/A
IAQ350XL 3" Air Measuring Louver with Integral AirMeasuring Station and Low-leak Damper 12" 275-2024 Free Area Transducer (LCD Display Optional) Optional 3%* W 12” H 12” W 48” H 96”
(consult factory)		 Velocity Pressure 0-5 or 0-10VDC (field select) 4-20mA opt. 0-5 VDC (w/AMS070V)
CDRAMS Round Control Damper with Integral Air Measuring Station Varies 400-4000 Transducer (LCD Display Optional) Optional 3%* Dia. 6" Dia. 24" Velocity Pressure 0-5 or 0-10VDC (field select) 4-20mA opt. 0-5 VDC (w/AMS070V)



*Accuracy is Ruskin certified based on results derived from wind tunnel tests at Ruskin’s state-of-the-art testing facility.

All tests conducted in accordance with AMCA 611.

CFDR2-3-4

Model Blade Material Frame Material Fusible Link Finish Minimum Size Maximum Size
Galvanized steel with UL Classified insulation as required (in gauges required by UL listing R8039) Galvanized (in gauges required by UL listing R8039) 165oF (74oC) standard. 212oF (100oC) available at no additional cost. Mill 8" x 10" (203 x 254) 324 sq. in. (2090) with max. A or B dim. of 24" (610)
CFD3 Galvanized steel with UL Classified insulation as required (in gauges required by UL listing R8039) Galvanized (in gauges required by UL listing R8039) 165oF (74oC) standard. 212oF (100oC) available at no additional cost. Mill 5" x 4" (127 x 102) 70 sq. in. (452) max.
CFDR2 Galvanized steel with UL Classified insulation as required (in gauges required by UL listing R8039) Galvanized (in gauges required by UL listing R8039) 165oF (74oC) standard. 212oF (100oC) available at no additional cost. Mill 12" (305) dia. 20" (508) dia.
CFDR3 Galvanized steel with UL Classified insulation as required (in gauges required by UL listing R8039) Galvanized (in gauges required by UL listing R8039) 165oF (74oC) standard. 212oF (100oC) available at no additional cost. Mill 5" (127) dia. 10" (254) dia.
CFD4 Galvanized steel with UL Classified insulation as required (in gauges required by UL listing R8039) Galvanized (in gauges required by UL listing R8039) 165oF (74oC) standard. 212oF (100oC) available at no additional cost. Mill 14" x 24" or 24" x 14" (356 x 610 or 610 x 356) 576 sq. in. (3716) with max. A or B dim. of 24" (610)
CDF2W Galvanized steel with UL Classified insulation as required (in gauges required by UL listing R8039) Galvanized (in gauges required by UL listing R8039) 165oF (74oC) standard. 285oF (141oC) available at no additional cost. Mill 5" x 4" (127 x 102) 324 sq. in. (2090) with max. A or B dim. of 24" (610)
CFD3W Galvanized steel with UL Classified insulation as required (in gauges required by UL listing R8039) Galvanized (in gauges required by UL listing R8039) 165oF (74oC) standard. 285oF (141oC) available at no additional cost. Mill 5" x 4" (127 x 102) 70 sq. in. (452) max.
CFDR2W Galvanized steel with UL Classified insulation as required (in gauges required by UL listing R8039) Galvanized (in gauges required by UL listing R8039) 165oF (74oC) standard. 285oF (141oC) available at no additional cost. Mill 12" (305) dia. 20" (508) dia.
CFDR3W Galvanized steel with UL Classified insulation as required (in gauges required by UL listing R8039) Galvanized (in gauges required by UL listing R8039) 165oF (74oC) standard. 285oF (141oC) available at no additional cost. Mill 5" (127) dia. 10" (254) dia.
CFD4W Galvanized steel with UL Classified insulation as required (in gauges required by UL listing R8039) Galvanized (in gauges required by UL listing R8039) 165oF (74oC) standard. 285oF (141oC) available at no additional cost. Mill 14" x 24" or 24" x 14" (356 x 610 or 610 x 356) 576 sq. in. (3716) with max. A or B dim. of 24" (610)

CFD5

Model Blade Material Frame Material Finish Fusible Link Thermal Insulation Blanket Minimum Size Maximum Size
CFD5 Galvanized steel with UL Classified insulation as required (in gauges required by UL listing R8039) Galvanized (in gauges required by UL listing R8039) Mill 165oF (74oC) standard. 212oF (100oC) available at no additional cost. Mineral wool std. 1/2" (13) Refractory Ceramic Fiber (RCF) is available at no additional cost. 4" x 5" (102 x 127) Ceiling opening - 24" x 24" (610 x 610) Diffuser neck - 18" x 18" (457 x 457)
CFDR5 Galvanized steel with UL Classified insulation as required (in gauges required by UL listing R8039) Galvanized (in gauges required by UL listing R8039) Mill 165oF (74oC) standard. 212oF (100oC) available at no additional cost. Mineral wool std. 1/2" (13) Refractory Ceramic Fiber (RCF) is available at no additional cost. 5" (127) dia. Ceiling opening - 24" x 24" (610 x 610) Diffuser neck - 20" (508) dia.

CFD7

Model Blade Material Frame Material Fusible Link Insulated Box Minimum Size Maximum Size
CFD7 Galvanized steel with UL Classified insulation as required (in gauges required by UL listing R8039) Galvanized (in gauges required by UL listing R8039) 165oF (74oC) standard. 212oF (100oC) available at no additional cost. 24 ga. (0.7) galv. steel with external insulation 5" x 4" (127 x 102) 16" x 12" (406 x 305)
CFD7-T Galvanized steel with UL Classified insulation as required (in gauges required by UL listing R8039) Galvanized (in gauges required by UL listing R8039) 165oF (74oC) standard. 212oF (100oC) available at no additional cost. t required 5" x 4" (127 x 102) 18" x 18" (457 x 457)
CFDR7-T Galvanized steel with UL Classified insulation as required (in gauges required by UL listing R8039) Galvanized (in gauges required by UL listing R8039) 165oF (74oC) standard. 212oF (100oC) available at no additional cost. t required 5" (127) dia. 8" (203) dia.

CFD8

Model Blade Material Frame Material Fusible Link Finish Minimum Size Maximum Size
CFD8 n-asbestos ceramic fiber Galvanized (in gauges required by UL listing R8039) 165oF (74oC) standard. 212oF (100oC) available at no additional cost. Mill 6"w x 6"h (152 x 152) 18" x 18" (457 x 457)

Airfoil blade

Damper Model Description DAMPER Section Widths* In. (mm) MAX. System Pressure (in. w.g.) MAX. Systerm Velocity (FPM) Leakage (CFM/sq. ft. Temperature Range oF (oC)
CD50 5" DEEP ALUM. 60" (1524) 3.50 3000 2.5 -72°F to 275°F
48" (1219) 6.20 4000 2.7 (-58°C to 135°C)
36" (914) 8.50 4000 3
24" (610) 10.75 5000 3
12" (305) 13.00 6000 3
CD50L 5" DEEP ALUM. LINEAR 48" (1219) 6.20 4000 2.7 -50ºF to 250ºF
36" (914) 8.50 4000 3 (-46°C to 121°C)
24" (610) 10.75 5000 3
12" (305) 13.00 6000 3
CD50V 5" DEEP ALUM. VERTICAL 48" (1219) 6.20 4000 7.2 -50ºF to 250ºF
36" (914) 8.50 4000 7.2 (-46°C to 121°C)
24" (610) 10.75 5000 10
12" (305) 13.00 6000 10
CD40 4" DEEP ALUM. 60" (1524) 3.00 3000 2.5 -72°F to 275°F
CD504 5" DEEP ALUM. 48" (1219) 6.00 4000 2.5 (-58°C to 135°C)
CD403 4" DEEP ALUM.LINEAR 12" (305) 15.00 6000 5
CD40X2 8" DEEP ALUM. INSULATED 36" (914) 10.00 4000 3.5
24" (610) 12.00 5000 3.5
CDTI-50 5" DEEP ALUM. INSULATED 60" (1524) 6.00 3000 2 -70°F to 200°F
CDTI-50BF 6" DEEP ALUM. INSULATED 48" (1219) 8.50 4000 2 (-57°C to 93°C)
36" (914) 11.00 4000 2
24" (610) 13.50 5000 2
12" (305) 16.00 6000 2
TED50 5" DEEP ALUM. 60" (1524) 6.00 3000 3 -45°F to 185°F
THERMAL EFFICIENT 48" (1219) 8.50 4000 3 (-43°C to 85°C)
36" (914) 11.00 4000 3
TED50XT 24" (610) 13.50 5000 3 -70°F to 200°F
12" (305) 16.00 6000 3 (-57°C to 93°C)
CD60 5" DEEP GALV. STEEL 60" (1524) 3.50 3000 2 -72°F to 275°F
48" (1219) 6.20 4000 2 (-58°C to 135°C)
36" (914) 8.50 4000 2
24" (610) 10.75 5000 2.5
12" (305) 13.00 6000 3
CD60V 5" DEEP GALV. STEEL VERTICAL 48" (1219) 6.20 4000 7.2 -76ºF to 275ºF
36" (914) 8.50 4000 7.2 (-60°C to 135°C)
24" (610) 10.75 5000 10
12" (305) 13.00 6000 10
ZMD60 6" DEEP ALUM. 30" (762) 9.50 4000 5 -72°F to 275°F
ZONE MIXING 24" (610) 10.50 4000 5 (-58°C to 135°C)
12" (305) 13.00 5000 5

*Damper section widths vary depending on system pressure and velocity requirements. Multiple section dampers are available in unlimited sizes. Leakage information based on pressure differential of 1" w.g. tested per AMCA 500.

Triple V and Flat Blade

Damper Model Description DAMPER Section Widths* In. (mm) MAX. System Pressure (in. w.g.) MAX. Systerm Velocity (FPM) Leakage (CFM/sq. ft. Temperature Range oF (oC)
CD36 5" DEEP GALV. STEEL 3-V 48" (1219) 2.50 2000 5.4 — -25°F to 185°F
36" (914) 3.00 2500 5.3 — (-32°C to 85°C)
24" (610) 4.00 3000 5.7 —
12" (305) 5.00 3000 7.0 —
CD35 5" DEEP GALV. STEEL 3-V 48" (1219) 2.50 1500 10.0 40.0 -40°F to 240°F
36" (914) 3.00 1500 10.0 40.0 (-40°C to 116°C)
24" (610) 4.00 1500 12.0 50.0
12" (305) 5.00 1500 17.0 65.0
CD356 5" DEEP GALV. STEEL 3-V 48" (1219) 2.50 2000 5.4 — -25°F to 185°F
36" (914) 3.00 2500 5.3 — (-32°C to 85°C)
24" (610) 4.00 3000 5.7 —
12" (305) 5.00 3000 7.0 —
CD355 5" DEEP GALV. STEEL 3-V 48" (1219) 2.50 1500 10.0 40.0 -40°F to 240°F
36" (914) 3.00 1500 10.0 40.0 (-40°C to 116°C)
24" (610) 4.00 1500 12.0 50.0
12" (305) 5.00 1500 17.0 65.0
IL35 5" DEEP GALV. STEEL 48" (1219) 4.0" 1500 5.4 — -25º F TO 180ºF
INSULATED 36" (914) 5.0" 1500 5.3 — (-32ºC to 83ºC)
24" (610) 6.0" 1500 5.7 —
12" (305) 8.0" 1500 7.0 —
CD51 5" DEEP ALUM. FLAT BLADE 48" (1219) 2.00 2000 3.2 — -50°F to 250°F
36" (914) 3.00 2000 1.6 — (-46°C to 121°C)
24" (610) 4.00 2000 2.2 —
12" (305) 5.00 2000 3.2 —
MD35 5" DEEP GALV. STEEL 3-V 36" (914) 2.00 1500 — — -40°F to 240°F
MANUAL BALANCING 24" (610) 2.50 1500 — — (-40°C to 116°C)
12" (305) 3.00 1500 — —
MD25 3" DEEP GALV. STEEL 36" (914) — 1500 — — -50°F to 250°F
MD15 MANUAL BALANCING 24" (610) — 1500 — — (-46°C to 121°C)
12" (305) — 1500 — —
MDRS25 ROUND MANUAL BALANCING 20" (508) — 1500 — —
MDRS26/ ROUND MANUAL BALANCING 16" (406) — 1000 — — -25°F to 180°F
MDRS27 (-32°C to 83°C)
CDO25 2" DEEP OVAL GALV. STEEL 40" (1016) 4.00 2500 9.4 Total 150 Total -50°F to 250°F
36" (914) 4.00 2500 8.5 Total 125 Total (-46°C to 121°C)
CDR25 2" DEEP ROUND GALV. STEEL 24" (610) 6.00 2500 5.7 Total 85 Total
12" (305) 8.00 2500 2.8 Total 50 Total
6" (152) 10.00 4000 1.4 Total 30 Total
CDRS25 6" DEEP ROUND GALV. 24" (610) 6.00 4000 5.7 Total —
STEEL 18" (457) 6.00 4000 4.2 Total —
12" (305) 8.00 4000 2.8 Total —
6" (152) 10.00 4000 1.4 Total —
CDRS15 6" DEEP ROUND GALV. 24" (610) 2.00 1000 10 — -20°F to 158°F
STEEL 4" (102) 4.00 3000 — (-29°C to 70°C)
WMRS25 ROUND MANUAL BALANCING 40" (1016) — 1500 — — -25°F to 250°F
4" (102) (-32°C to 121°C)
PVC12 PVC FRAME, 16" (406) 4.00 4000 — — 73ºF to 180°F
BLADE AND AXLE 6" (152) 4.00 4000 — — (-32ºC to 83°C)

*Damper section widths vary depending on system pressure and velocity requirements. Multiple section dampers are available in unlimited sizes. Leakage information based on pressure differential of 1" w.g. tested per AMCA 500.
**For optimum sound characteristics and pressure drop performance on dampers with v-groove blades, we recommend sizing dampers for 2000 fpm (10.2 m/s).
Higher velocities are not recommended for outside air openings, due to water penetration concerns. For best pressure drop and sound performance at higher velocities, consider an airfoil blade damper, such as Ruskin model CD60.
For up-to-date information visit www.ruskin.com

CFD

Model CFM Static Pressure Throw In Feet Neck Velocity Jet Velocity Noise Level Unit Weight
CDF-16 600 0.09 10-14 234 417 18 27.00
800 0.11 12-18 313 556 20 27.00
1000 0.14 15-20 391 691 20 27.00
1200 0.17 16-22 469 833 25 27.00
1400 0.20 17-24 547 972 30 27.00
CDF-18 1000 0.14 15-20 391 694 20 27.00
1200 0.17 16-22 469 833 25 27.00
1400 0.20 17-24 547 972 30 27.00
1600 0.24 18-25 625 1111 30 27.00
1800 0.30 20-28 703 1250 35 27.00
2000 0.36 21-29 781 1389 40 27.00
2200 0.40 22-30 859 1528 40 27.00
CDF-20 2600 0.17 19-24 663 1294 30 42.00
2800 0.20 20-28 714 1393 35 42.00
3000 0.25 21-29 765 1492 35 42.00
3200 0.31 22-29 816 1592 40 42.00
3400 0.37 22-30 867 1692 40 42.00
CDF-22 3600 0.17 22-29 844 1646 34 104.00
4000 0.21 24-33 938 1829 40 104.00
4400 0.27 28-37 1032 2011 40 104.00
CDF-50 4500 0.31 25-34 922 1795 40 151.00
5000 0.34 24-33 938 1829 40 151.00
5400 0.39 32-41 1083 2107 45 151.00
5600 0.36 28-37 1000 2082 45 158.00
CDF-60 6000 0.42 40-50 1071 2230 45 158.00
6400 0.50 43-52 1143 2379 50 158.00
6600 0.54 45-56 1179 2454 50 158.00
7200 0.39 26-35 996 2093 45 197.00
CDF-80 8000 0.50 42-51 1107 2326 50 197.00
8400 0.56 44-54 1162 2442 50 197.00
8800 0.63 48-59 1217 2558 50 197.00
9600 0.41 32-41 1036 2159 45 197.00
CDF-100 10000 0.45 37-46 1079 2249 45 197.00
10400 0.50 42-51 1122 2339 50 197.00
10000 0.57 37-46 713 1506 35 244.00
11000 0.72 46-56 785 1657 35 244.00
CDF - 300 12000 0.90 54-66 856 1808 40 244.00
13000 1.10 62-75 927 1958 40 244.00

1. all data is based on the air diffusion Council guidelines.
2. Throw data is based on Terminal velocities of 75 fpm using isothermal air.
3. “neck velocity” is the speed in feet per minute of the air coming into the diffusers – similar to duct velocity.*
4. “Jet velocity” is the speed in feet per minute of the air exiting the diffusers.*
* Jet velocity is higher than neck velocity on the Cdf flush mount diffusers because the air gets “pinched down” as it exits, unlike the drop down CdS diffuser where Jet velocity and neck velocity are essentially equal.

CDS

Model CFM Static Pressure Throw In Feet Neck Velocity Noise Level Unit Weight
CDS-16 600 0.09 8-15 210 20 38.00
800 0.11 9-16 281 20 38.00
1000 0.14 10-17 351 20 38.00
1200 0.17 11-18 421 20 38.00
CDS-18 1200 0.17 11-18 421 20 38.00
1400 0.20 12-19 491 20 38.00
1600 0.24 12-20 561 20 38.00
1800 0.30 13-21 632 20 38.00
2000 0.36 14-23 702 20 38.00
2200 0.40 16-25 772 20 38.00
CDS-20 2600 0.17 24-29 669 20 82.00
2800 0.20 25-30 720 25 82.00
3000 0.25 27-33 772 25 82.00
3200 0.31 28-35 823 25 82.00
3400 0.37 30-37 874 30 82.00
CDS-22 3600 0.17 25-33 851 30 122.00
3800 0.18 27-35 898 30 122.00
4000 0.21 29-37 946 30 122.00
4200 0.24 32-40 993 30 122.00
4400 0.27 34-42 1040 30 122.00
CDS-50 4600 0.31 26-31 841 30 145.00
4800 0.32 27-32 878 30 145.00
5000 0.34 28-33 915 30 145.00
5200 0.36 28-34 951 30 145.00
5400 0.39 29-35 988 30 145.00
CDS-60 5600 0.36 39-49 920 30 217.00
5800 0.39 42-51 954 30 217.00
6000 0.42 44-54 1022 30 217.00
6200 0.46 45-55 1056 30 217.00
6400 0.50 46-55 1090 30 217.00
6600 0.54 47-56 1124 30 217.00
CDS-80 7200 0.39 33-38 827 25 238.00
7600 0.43 36-41 873 25 238.00
8000 0.50 39-44 918 30 238.00
8400 0.56 43-49 964 30 238.00
8800 0.63 47-55 1010 30 238.00
CDS-100 9200 0.74 49-57 1056 50 238.00
9400 0.80 50-58 1079 55 238.00
9600 0.83 52.62 1102 55 238.00
9800 0.86 55.63 1125 55 238.00
10000 1.00 57-65 1148 55 238.00
10200 1.07 60-68 1171 60 238.00
10400 1.16 63-71 1194 60 238.00
CDS - 300 10000 0.51 46-54 907 30 285.00
10500 0.58 50-58 953 30 285.00
11000 0.65 53-61 998 30 285.00
11500 0.73 55-64 1043 30 285.00
12000 0.82 58-67 1089 30 285.00
12500 0.91 61-71 1134 30 285.00
13000 1.00 64-74 1179 35 285.00

* The drop down CDS diffusers have enough face area in the supply grills so that the air velocity does not increase significantly as it exits the concentric. Therefore, “Neck Velocity” and “Jet Velocity” are the same for the drop downs.
1. All data is based on the Air Diffusion Council guidelines.
2. Throw data is based on Terminal Velocities of 75 FPM using isothermal air.
3. “Neck Velocity” is the speed in feet per minute of the air coming into the diffusers –similar to duct velocity.*
4. “Jet Velocity” is the speed in feet per minute of the air exiting the diffusers.*
5. Throw is based on diffuser blades being directed in a straight pattern

SOD

MODEl# CFM Neck Vel Static Throw NOISE unit weight
SOD-24 600 270 0.04 12-17 20 25
800 364 0.06 16-22 20 25
1000 450 0.07 20-28 20 25
1200 536 0.09 24-33 20 25
1400 625 0.11 28-39 20 25
1600 714 0.14 33-44 25 25
1800 804 0.16 41-52 30 25
2000 893 0.19 46-55 30 25
SOD-36 3600 810 0.19 49-54 25 51
3800 863 0.21 50-55 25 51
4000 909 0.23 51-56 30 51
4200 955 0.26 53-60 30 51
4400 1000 0.3 54-62 30 51
SOD-40 5400 1116 0.18 45-53 30 80
5600 1157 0.19 47-55 30 80
5800 1198 0.22 50-57 30 80
6000 1240 0.25 53-59 30 80
6200 1281 0.27 54-61 35 80
6400 1322 0.3 56-63 35 80
6600 1364 0.33 58-65 35 80
7000 1405 0.37 59-67 35 80
SOD-60 5600 920 0.18 39-49 30 105
5800 954 0.21 42-51 30 105
6000 1022 0.24 44-54 30 105
6200 1056 0.26 45-55 35 105
6400 1890 0.28 46-55 35 105
6600 1124 0.3 47-56 35 105
SOD-80 7200 827 0.18 33-38 25 175
8000 918 0.2 39-44 25 175
8800 1010 0.22 47-55 30 175
9600 1101 0.27 54-62 30 175
10000 1148 0.3 57-65 35 175
Sod-300 12000 11200 1140 0.3 44-65 40 212
12000 1300 0.34 52-70 40 212

1. white finish available.
2. Special sizes available.

DLD

30o Deflection 0o Deflection
Model CFM Noise Static Throw Noise Static Throw Grille Size Unit Weight
DLD-2010 4000-5000 45 0.42 34-37 <40 0.28999999999999998 40-45 20x10 53
DLD-2510 6000 <45 0.50800000000000001 39 <40 0.33 48 25x10 62
DLD-3012 8000 <45 0.44 47 <40 0.3 63 30x12 73
DLD-3510 8000 <45 0.44 47 <40 0.3 63 35x10 91
DLD-4010 10000 <45 0.52800000000000002 46 <40 0.33 62 40x10 124
DLD-5010 12000 <45 0.54300000000000004 56 <40 0.35 72 50x10 151

3000 FPM - Fire Damper

Fire Damper Model SIZE STATIC PRESSURE TEMPERATURE (F) INSTALLATION
DIBD2, 20, 40 & 60 24” x 24” 4” N/A V or H
DIBD23, 230, 430 & 630 24” x 24” 4” N/A V or H
DIBD2G, 20G, OW 24” x 24” 4” N/A V or H
DIBD2GA 24” x 24” 4” N/A Vertical
DFD60 90" x 64" 6" N/A V or H
120" x 32" 4” N/A V or H
60” x 96” 4” N/A V or H
DFD60GA 64" x 48" 8” N/A Vertical
DFD60/OW 60" x 48" 8” N/A Horizontal
DFD-60-3 32" x 36" 8” N/A Vertical
32" x 36" 8” N/A V or H
90" x 64" 6” N/A V or H
120” x 32” 8” N/A V or H
60” x 96” 6” N/A V or H
60” x 96” 4” N/A V or H

3000 FPM - Smoke Dampers

Smoke Damper Model SIZE STATIC PRESSURE TEMPERATURE (F) INSTALLATION
SD50, SD60, SD60-2 180” x 64” 6” 250 V or H
360” x 32” 6” 250 V or H
90” x 128” 6” 250 V or H
SD60 & SD60-2 24” x 24” 8” 250 V or H
64" x 64" 4" 350 V or H
128" x 32" 4” 350 V or H
90” x 64” 6” 350 V or H
24" x 24" 8” 350 V or H
SD60 V 36" x 32" 4” 350 V or H
32" x 32" 4” 350 V or H
32" x 30" 6” 350 V or H
24" x 24" 8” 350 V or H

3000 FPM - FSD

Fire Damper Model SIZE STATIC PRESSURE TEMPERATURE (F) INSTALLATION
FSD60 & FSD60-2 120” x 96” 6” 250 V or H
144” x 64” 6” 250 Horizontal
FSD60-3 120" x 96" 6” 250 V or H
144" x 64" 6” 250 Horizontal
32" x 36" 4" 350 V or H
60" x 72" 4” 350 V or H
120" x 36" 4” 350 V or H
FSD60GA & FSD60-2GA 24" x 24" 8” 250 V or H
32" x 36" 4” 250 Vertical
FSD60/OW & FSD60-2/OW 30" x 32" 6” 250 Vertical
32" x 36" 4” 250 V or H
32" x 36" 4” 350 Vertical
FSD60 & FSD60-2 30" x 32" 6” 250 V or H
64" x 64" 4” 350 V or H
60" x 64" 4” 350 V or H
FSD60GA & FSD60-2GA 120" x 32" 4” 350 V or H

4000 FPM - Fire Damper

Fire Damper Model SIZE STATIC PRESSURE TEMPERATURE (F) INSTALLATION
DIBD2, 20, 40 & 60 24” x 24” 4” N/A Vertical
DIBD23, 230, 430 & 630 24” x 24” 4” N/A Vertical
DIBD2G, 20G, OW 24” x 24” 4” N/A Vertical
DFD60 64” x 48” 8” N/A Vertical
64" x 48" 8" N/A Horizontal
DFD60-3 60" x 48" 8” N/A V or H

4000 FPM - Smoke Damper

Smoke Dampers SIZE STATIC PRESSURE TEMPERATURE (F) INSTALLATION
SD50, SD60, SD60-2 48” x 48” 8” 250 V or H
96” x 24” 8” 250 V or H
24” x 96” 8” 250 V or H
SD60V 24” x 24” 8” 250 V or H

4000 FPM - Smoke Damper

Fire/Smoke Damper Models SIZE STATIC PRESSURE TEMPERATURE (F) INSTALLATION
FSD60, FSD60-2, FSD60-3 48” x 48” 8” 250 V or H
96” x 24” 8” 250 V or H
24” x 96” 8” 250 V or H
FSD60GA & FSD60-2GA 32” x 48” 8” 250 Vertical
FSD60/OW & FSD60-2/OW 32” x 48” 8” 250 V or H

ERV - Enervent

Model CFM Range Supply Motor HP Exhaust Motor HP External Static Supply (in.wg) External Static Exhaust (in.wg)
Min Max Min Max Min Max Max Max
EVT-010 600 1000 1 1.5 1 1.5 1.5 - 3.0 1.5 - 3.0
EVT-019 900 1900 1 2 1 2 1.5 - 3.0 1.5 - 3.0
EVT-028 1600 2800 1.5 3 1 2 1.5 - 3.0 1.5 - 3.0
EVT-036 2400 3600 2 5 1.5 3 1.5 - 3.0 1.5 - 3.0
EVT-046 3000 4600 2 5 2 5 1.5 - 3.0 1.5 - 3.0
EVT-062 3400 6200 3 7.5 2 5 1.5 - 3.0 1.5 - 3.0
EVT-074 5400 7400 3 7.5 9 7.5 1.5 - 3.0 1.5 - 3.0
EVT-088 6400 8800 5 10 5 10 1.5 - 3.0 1.5 - 3.0
EVT-100 7600 10000 5 10 3 7.5 1.5 - 3.0 1.5 - 3.0
EVT-120 8000 12000 7.5 15 5 10 1.5 - 3.0 1.5 - 3.0

D-02

ERV DATA
erv series CFM range duct size
d11-02 300-1100 17.00 x 11.38
d20-02 1200-2000 21.88 x 14.00
d28-02 1200-2800 20.25 x 17.00
d36-02 2000-3600 23.38 x 17.38
d46-02 3000-4600 23.38 x 20.38
d62-02 4600-6200 29.38 x 30.00
d80-02 6000-8000 38.75 x 35.38
d120-02 8000-13000 40.00 x 44.50

S-02

ERV DATA
erv series CFM range
s11-02 300-1100
s20-02 1200-2000
s28-02 1200-2800
s36-02 2000-3600
s46-02 3000-4600
s62-02 4600-6200

O-O2

ERV DATA
erv series CFM range
o11-02 300-1100
o20-02 1200-2000
o28-02 1200-2800
o36-02 2000-3600
o46-02 3000-4600
o62-02 4600-6200

M-02

ERV DATA
erv series CFM range
M11-02 300-1100
M20-02 1200-2000
M28-02 1200-2800
M36-02 2000-3600
M46-02 3000-4600
M62-02 4600-6200

N-02

ERV DATA
erv series CFM range
n11-02 300-1100
n20-02 1200-2000
n28-02 1200-2800
n36-02 2000-3600
n46-02 3000-4600
n62-02 4600-6200

Industrial Dampers

Damper Model Damper Type Material of Construction Frame Depth(See Product Data Sheet for Details) Frame Style Blade Type Linkage Max System Conditions(See Product Data Sheet for Details) Leakage Rate (with Seals; cfm/sq.ft) NOTE: based on 36" wide multi-blade control dampers or 36" diameter round dampers Max Single-Section Size (in.)NOTE: unlimited mult-section sizes available. Product Data Sheet Revit CSI 3 Part Spec Installation Instructions
Standard Optional Pressure(in-wg) Velocity(fpm) Temperature°F (°C) 1" wg 4" wg 10" wg
NRBD-100 Backdraft/Pressure Relief Coated HRS 304SS, 316SS, Alum 4.25" Channel Round 10 4000 250 (121) - - - 96" X
CBS7 Backdraft/Pressure Relief Galvanized Steel 304SS, 316SS, Alum 8" Channel, Flanged Double-V Internal 10 3000 250 (121) 15 30 - 48"x96" X X X
CBS8 Backdraft/Pressure Relief Galvanized Steel 304SS, 316SS, Alum 8" Channel, Flanged Airfoil Internal 15 4000 250 (121) 13.5 27 43.2 60"x96" X X X
CBS92 Backdraft/Pressure Relief Alum 304SS or 316SS Frame 9" Channel, Flanged Airfoil Internal 14 4000 250 (121) 13.5 27 43.2 60"x96" X X X
CBDR82 Backdraft/Pressure Relief Coated HRS 304SS, 316SS, Alum Varies by Size Channel, Flanged Round 10 6000 250 (121) 4.0 8.0 - 60"
CBDR92 Backdraft/Pressure Relief Coated HRS 304SS, 316SS, Alum Varies by Size Channel, Flanged Round 17 6000 250 (121) 4.0 8.0 12.8 44"
PDR92 Air Intake Damper Coated HRS 304SS, 316SS, Alum Varies by Size Channel, Flanged Round 20 6000 250 (121) 4.0 8.0 12.8 52" X X X
CD30VG1 Multi-Blade Control Dampers Galvanized Steel 304SS, 316SS, Alum 3" Channel Triple-V Internal 8 3000 250 (121) 4.3 8.6 13.6 48"x96" X X X
CD30VG2 Multi-Blade Control Dampers Galvanized Steel 304SS, 316SS, Alum 3" Channel Triple-V Internal 20 3500 250 (121) 4.3 8.6 13.6 48"x96" X X X
CD30AF1 Multi-Blade Control Dampers Galvanized Steel 304SS, 316SS, Alum 3" Channel Airfoil Internal 24 4000 250 (121) 4.0 8.0 12.6 48"x96" X X X
CD30AF2 Multi-Blade Control Dampers Galvanized Steel 304SS, 316SS, Alum 3" Channel Airfoil Internal 32 6000 250 (121) 4.0 8.0 12.6 60"x96" X X X
CD80VG1 Multi-Blade Control Dampers Galvanized Steel 304SS, 316SS, Alum 8" Channel, Flanged Triple-V External 8 3000 250 (121) 4.3 8.6 13.6 48"x96" X X X
CD80VG2 Multi-Blade Control Dampers Galvanized Steel 304SS, 316SS, Alum 8" Channel, Flanged Triple-V External 20 3000 250 (121) 4.3 8.6 13.6 48"x96" X X X
CD80AF1 Multi-Blade Control Dampers Galvanized Steel 304SS, 316SS, Alum 8" Channel, Flanged Airfoil External 24 6000 250 (121) 4.0 8.0 12.6 48"x96" X X X
CD80AF2 Multi-Blade Control Dampers Galvanized Steel 304SS, 316SS, Alum 8" Channel, Flanged Airfoil External 32 6000 250 (121) 4.0 8.0 12.6 60"x96" X X X
CD80AF3 Multi-Blade Control Dampers Galvanized Steel 304SS, 316SS, Alum 8" Channel, Flanged Airfoil External 34 6000 250 (121) 4.0 8.0 12.6 60"x96" X X X
CD80AF4 Multi-Blade Control Dampers Galvanized Steel 304SS, 316SS, Alum 8" Channel, Flanged Airfoil External 44 6000 250 (121) 4.0 8.0 12.6 60"x96" X X X
CD82HT Multi-Blade Control Dampers Coated HRS 304SS, 316SS 8" Channel, Flanged Formed External 21 4000 750 (399) 4.3 8.6 13.6 60"x96" X X X
CD102 / OD102 Multi-Blade Control Dampers Alum 304SS or 316SS Frame 8" Channel, Flanged Airfoil External 24 5000 300 (149) 8.0 16.0 25.3 60"x96" X X X
CDRS82 Round Control Dampers Galvanized Steel 304SS 8" Channel, Flanged Round 4 4000 250 (121) 1.2 2.4 - 48" X X X
CDR82 Round Control Dampers Coated HRS 304SS, 316SS, Alum 8" Channel, Flanged Round 10 6000 250 (121) 4.0 7.9 - 60" X X X
CDR92 Round Control Dampers Coated HRS 304SS, 316SS, Alum 9" Channel, Flanged Round 17 6000 250 (121) 4.0 7.9 12.5 72" X X X
CDR93 Round Control Dampers Coated HRS 304SS, 316SS, Alum Varies by Size Channel, Flanged Round 25 7000 250 (121) 4.0 7.9 12.5 72" X X
CDR94 Round Control Dampers Coated HRS 304SS, 316SS, Alum Varies by Size Channel, Flanged Round 40 7000 250 (121) 4.0 7.9 12.5 72" X X
CDRI92 Round Control Dampers Coated HRS 304SS, 316SS, Alum Varies by Size Channel, Flanged Round 20 7000 250 (121) 0.5 0.9 1.5 72" X X X
CDRI95 Round Control Dampers Coated HRS 304SS, 316SS Varies by Size Channel, Flanged Round 20 5000 500 (260) 1.9 3.8 6.1 60" X X X
IVD Round Control Dampers Coated HRS 304SS, 316SS Varies by Size Channel, Flanged Formed External 8 14000 200 (93) 65" X X X
RVD Round Control Dampers Coated HRS 4" Angle, Single Flange Formed 4 2200 200 (93) 60" X X
PSD Bubble Tight Isolation Dampers Galvanized Steel 304SS, 316SS, Alum 12" Channel, Flanged Dish Internal 10 2000 250 (121) Bubble Tight Leakage Performance in Accordance with AMCA Standard 500-D. 42"x42" / 42" dia. X X
BTR82 Bubble Tight Isolation Dampers 304SS Coated HRS 9" Channel, Flanged Round 10 4000 250 (121) 36"
BTO82 Bubble Tight Isolation Dampers 304SS Coated HRS 9" Channel, Flanged Oval 10 4000 250 (121) 36"
BTR92 Bubble Tight Isolation Dampers 304SS/Coated HRS 316SS 12" Channel, Flanged Round 30 7000 250 (121) 48" X X X
BTO92 Bubble Tight Isolation Dampers 304SS/Coated HRS 316SS 12" Channel, Flanged Oval 30 7000 250 (121) 48" X X X
CBS8BL Blast Suppression Damper Galvanized Steel 304SS, 316SS 12" Channel, Flanged Airfoil External 250 (121) 36"x96" X X
CD80AF Multi-Blade Tunnel Ventilation Damper Galvanized Steel 304SS, 316SS 12" Channel, Flanged Airfoil External 24 4000
TFD80 Multi-Blade Tunnel Ventilation Damper Galvanized Steel 304SS, 316SS 8" Channel, Flanged Airfoil External 24 4000 X X
TD102 Multi-Blade Tunnel Ventilation Damper Alum 304SS or 316SS Frame 10" Channel, Flanged Airfoil External 25 4000 X X

FSD

Model Rating Class Blade Type Blade Position Walls Floors Integral Angle One-Side Angle Installation "Out of Wall/Floor" Grille Access in Shafts Round Duct Fire Stop (no angles) Installation "Tunnel" Corridor Ceilings Volume Control (modulating Actuator) Explosion Proof Housing Stainless Steel (Severe Environment) Security Bars
FSD60 1.5 hour 1 Airfoil 120" x 98" 90" x 48" 32" x 36" 90" x 48" or 48" x 90" 32" x 36" 36" x 36" 96" 90" x 48" Yes
FSD60-2 1.5 hour 2 Airfoil 120" x 98" 90" x 48" 32" x 36" 90" x 48" or 48" x 90" 32" x 36" 32" x 36" 96" 90" x 48" Yes
FSD60V 1.5 hour 2 Airfoil Vertical 49" x 32" 36" x 32" 36" x 32" 36" x 32" 30" 48" x 32" Yes
FSD60-3 3 hour 1 Airfoil 120" x 98" 144" x 96" 96" 90" x 48" 120" x 48" Yes
FSD60FA 1.5 hour 1 Airfoil Front access 36" x 36" 36" x 36" 36" x 36" C/F Yes
FSD37 1.5 hour 1 3V Groove 120" x 98" 144" x 96" 90" x 48" or 48" x 90" 96" 90" x 48"
FSD36 1.5 hour 2 3V Groove 126" x 122" 144" x 96" 36" x 32" 90" x 48" or 48" x 90" 36" x 36" 36" x 36" 120" 90" x 48" Yes
FSD36 1.5 hour 3 3V Groove 120" x 98" 144" x 96" 36" x 32" 90" x 48" or 48" x 90" 36" x 36" 96" x 48" 94" 90" x 48" Yes
FSDR60-LP 1.5 hour 1 "True Round" 24" 24" 24"
FSD36C 1 hour Tunnel Corridor 3V 24" x 24" 24" x 24" 24" 24" x 24"
DFSDR1 1 hour Tunnel Corridor 22" 12"
FSDR25C 12" 12"
FSD35SS 1.5 hour 3 3V Groove 90" x 48" or 48" x 90" 12" 90" x 48" Yes
FSD36SS 1.5 hour 2 3V Groove 90" x 48" or 48" x 90" 90" x 48" Yes
FSD37SS 1.5 hour 1 3V Groove 90" x 32" 90" x 32" Yes
FSD60XP 1.5 hour 1 Airfoil 64" x 48" Yes
FSD60M 1.5 hour 1 Airfoil 120" x 48" Yes
FSD60-3M 3 hour 1 Airfoil 120" x 48" Yes

FD

Model Rating Sleeve Blade Type Blade Position Walls Floors Integral Angle One-Side Angle Installation "Out of Wall/Floor" Grille Access in Shafts Round Duct Fire Stop (no angles) Installation "Tunnel" Corridor Ceilings Volume Control (modulating Actuator) Explosion Proof Housing Stainless Steel (Severe Environment) Security Bars
IBD2 1.5 hour No sleeve 120" x 72" 90" x 91" 36" x 36" 90" x 48" or 48" x 90" 36" x 36" 36" x 36" 85" 90" x 48" Yes
IBD2SS 1.5 hour No sleeve 99" x 72" or 90" x 91" Yes
IBD20 , 40, 60 1.5 hour integral sleeve 84" x 72" 84" x 84" 84" x 72" 31" 84" x 48"
IBD23 3 hour No sleeve 90" x 72" 90" x 91" 85" 90" x 48" Yes
IBD230, 430,630 3 hour integral sleeve 84" x 72" 84" x 84" 31" 84" x 84"
FD35/60 1.5 hour 3V and Airfoil Multiblade 72" x 96" or 126" x 48" 72" x 96" or 126" x 48" 36" x 36" 90" x 48" or 48" x 90" 62" 90" x 48" Yes
FD35/60 1.5 hour 3V Multiblade 64" x 96" or 120" x 48" 64" x 96" or 120" x 48" 32" x 36"
FD35SS 72" x 96" or 126" x 48" Yes
FDR25 1.5 hour "True Round" 24" 24" 36" x 36" 24" 24"
DIBD2 1.5 hour No sleeve 72" x 48" 36" x 48" 72" x 48" or 48" x 72" 36" x 36" 36" x 36" 85" 90" x 48" Yes
DIBD2SS 1.5 hour No sleeve 72" x 48" or 48" x 72" Yes
DIBD20, 40, 60 1.5 hour integral sleeve 72" x 48" 36" x 48" 72" x 48" or 48" x 72" 31" 84" x 48"
DIBD23 3 hour No sleeve 72" x 48" 36" x 48" 85" 90" x 48" Yes
DIBD23SS 3 hour No sleeve 72" x 48" or 48" x 72" Yes
DIBD230, 430, 630 3 hour integral sleeve 72" x 48" 36" x 48" 31" 84" x 84"

SD

Model Rating Class Blade Type Blade Position Walls Floors Integral Angle One-Side Angle Installation "Out of Wall/Floor" Grille Access in Shafts Round Duct Fire Stop (no angles) Installation "Tunnel" Corridor Ceilings Volume Control (modulating Actuator) Explosion Proof Housing Stainless Steel (Severe Environment) Security Bars
SD60 1 Airfoil 144" x 96", 288" x 48" or 72" x 144" 144" x 96", 288" x 48" or 72" x 144" 94" Yes
SD60M 1 Airfoil Modulating 120" x 48" Yes
SD60-2 2 Airfoil 144" x 96", 288" x 48" or 72" x 144" 144" x 96", 288" x 48" or 72" x 144" 94" Yes
SD50 1 Aluminum Airfoil 144" x 96", 288" x 48" or 72" x 144" 144" x 96", 288" x 48" or 72" x 144" 94" Yes
SD37 1 Airfoil or 3V 144" x 96", 288" x 48" or 72" x 144" 144" x 96", 288" x 48" or 72" x 144" 94" Yes
SD36 2 3V 144" x 96", 288" x 48" or 72" x 144" 144" x 96", 288" x 48" or 72" x 144" 94" Yes
SD35 3 3V 144" x 96", 288" x 48" or 72" x 144" 144" x 96", 288" x 48" or 72" x 144" 94" Yes
SDRS25 1 "True Round" 24" 24" 24" Yes

MV 250 - 250X

External Static Pressure 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
CFM Low 498 479 459 435 411 384 347 307 263 218 175
High 592 565 530 496 463 431 398 356 311 262 218

MV 450 -450X

External Static Pressure 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
CFM Low 656 640 625 609 590 570 552 538 511 477 440
Medium 729 708 690 671 649 627 605 582 560 530 495
High 783 765 740 721 700 678 650 622 598 580 560

MV 750 - 750X

External Static Pressure 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
CFM Low 823 822 821 819 808 790 778 762 755 738 718
Medium 997 992 985 975 960 940 928 905 884 872 850
High 1162 1145 1130 1104 1095 1090 1068 1047 1020 998 967

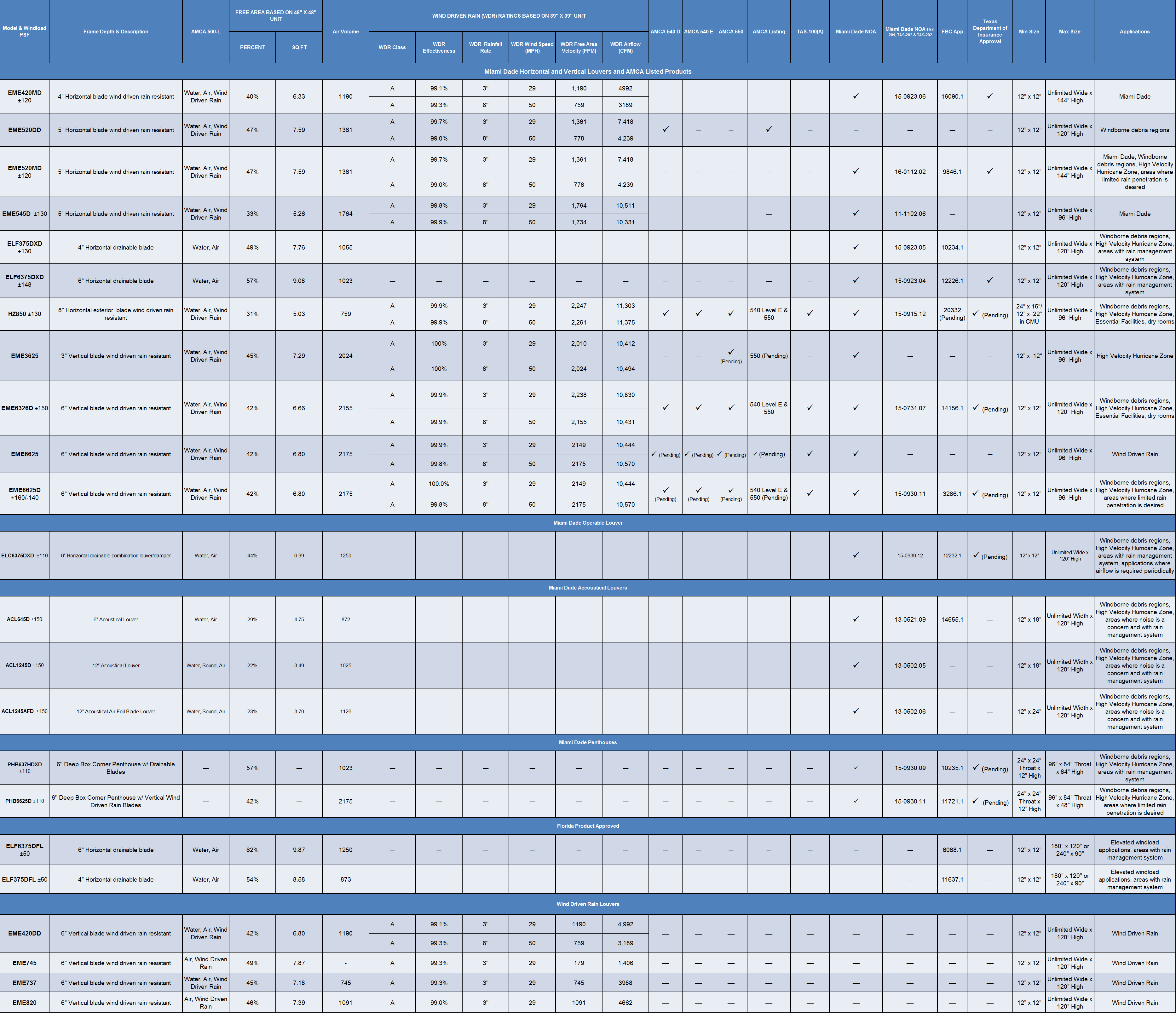

Louvers

Model Type Class Blade Type Frame Depth Free Area AMCA CRP Listing Velocity Pressure fpm Product Page Product Data Sheet Revit CSI 3 Part Spec Installation Instructions
ACL1245 Stationary Acoustical Louver Acuostical 12" 29% AMCA certified Air, Water and Sound performance. 917 G-64 X X X ON SPEC
ACL1245AF Stationary Acoustical Louver Airfoil Blade 12" 23% AMCA certified Air, Water and Sound performance. 1126 G-64 X X X ON SPEC
ACL1245AFD Acoustical Louvers Miami-Dade Approved Airfoil Blade 12" 23% AMCA certified Air, Water and Sound performance. 1126 G-24 X X X NOA
ACL1245D Acoustical Louvers Miami-Dade Approved Acuostical 12" 29% AMCA certified Air, Water and Sound performance. 1025 G-24 X X NOA
ACL445 Stationary Acoustical Louver Acuostical 4" 30%
ACL645 Acoustical Louvers
ACL645D Acoustical Louvers Miami-Dade Approved Acuostical 6" 29%
ACL845 Stationary Acoustical Louver Airfoil Blade
ACL845AF Stationary Acoustical Louver
EAL6811 Acoustical Louvers
EAL6811M Adjustable Acoustical Louver
ELM6375DX Aluminum Drainable Adjustable
ELM6DW Aluminum Drainable Adjustable Warehouse Louver
ELM811D Aluminum Drainable Adjustable
ELM6375X Aluminum Non-Drainable Adjustable
ELM811: Aluminum Non-Drainable Adjustable
ELM811H Aluminum Non-Drainable Adjustable
ELM90: Aluminum Non-Drainable Adjustable
ELM90H Aluminum Non-Drainable Adjustable
ELM90HFA Aluminum Non-Drainable Adjustable
LM375D Steel Drainable Adjustable
LM6375D Steel Drainable Adjustable
L6745 Steel Non-Drainable Adjustable
L745 Steel Non-Drainable Adjustable
LM6811 Steel Non-Drainable Adjustable
AML3: Air Measuring Louver, 275-2,024 FPM, Velocity Pressure Air Measuring Louver THESE SHOULD GO UNDER AIR MEASURING PRODUCT
AML6: Air Measuring Louver, 345-2,149 FPM, Velocity Pressure Air Measuring Louver THESE SHOULD GO UNDER AIR MEASURING PRODUCT
ELC6375DXD: Combination Hurricane Louver Hurricane Louvers
ELF375DFL: Stationary Louver Hurricane Louvers
ELF375DXD: Extruded Aluminum Hurricane Louver Hurricane Louvers
ELF6375DFL: Stationary Louver Hurricane Louvers
ELF6375DXD: Miami-Dade County Approved Stationary Louver Hurricane Louvers Miami-Dade Approved
EME420MD: Wind Driven Rain Resistant Stationary Louver Hurricane Louvers
EME520MD: Wind Driven Rain Resistant Stationary Louver Hurricane Louvers
EME545D: Wind Driven Rain Resistant Stationary Louver Hurricane Louvers
EME6325D: Hurricane Louver Hurricane Louvers
EME6625D: Miami-Dade County Approved Stationary Louver Hurricane Louvers Miami-Dade Approved
HZ850: AMCA 540/550 Miami Dade Approved Hurricane Louvers
PHB637HDXD: Hurricane Penthouse Hurricane Louvers
PHB6625D: Hurricane Penthouse Hurricane Louvers
EME220DD: Stationary Wind Driven Rain Louver Wind-Driven Rain Louvers
EME3625: Wind-Driven Rain Resistant Stationary Louver Wind-Driven Rain Louvers
EME420DD: Stationary Wind Driven Rain Louver Wind-Driven Rain Louvers
EME420MD: Wind Driven Rain Resistant Stationary Louver Wind-Driven Rain Louvers
EME520DD: Wind-Driven Rain Resistant Louver Wind-Driven Rain Louvers
EME520MD: Wind Driven Rain Resistant Stationary Louver Wind-Driven Rain Louvers
EME545D: Wind Driven Rain Resistant Stationary Louver Wind-Driven Rain Louvers
EME6325D: Hurricane Louver Wind-Driven Rain Louvers
EME6625: Stationary Rain-Resistant Louver Wind-Driven Rain Louvers
EME6625D: Miami-Dade County Approved Stationary Louver Wind-Driven Rain Louvers
EME737: Wind Driven Rain Louver Wind-Driven Rain Louvers
EME745: Wind-Driven Rain Resistant Stationary Louver Wind-Driven Rain Louvers
EME820DD: Stationary Louver Wind-Driven Rain Louvers
HZ850: AMCA 540/550 Miami Dade Approved Wind-Driven Rain Louvers
PH837: Penthouse Louver Penthouse Louver
PHB: Box Penthouse Box Penthouse
PHB637HDXD: Hurricane Penthouse Hurricane Penthouse
PHM: Mitered Penthouse Mitered Penthouse
EG100: Horizontal Screen Screen Horizontal Blade
EV211: Horizontal Screen Screen Horizontal Blade
EV811: Horizontal Screen Screen Horizontal Blade
LV811: Horizontal Screen Screen Horizontal Blade
EV300: Vertical Screen Screen Vertical Blade
EV400: Vertical Screen Screen Vertical Blade
EV400V: Vertical Screen Screen Vertical Blade
EV538: Vertical Chevron Screen Screen Vertical Blade
EV700: Sightproof Vertical Screen Screen Vertical Blade
ELF520DD: Sightproof, Aluminum, Drainable Louver Aluminum Drainable Sightproof
ELF22V: Stationary Louver Aluminum Non-Drainable Sightproof
ELF30V: Stationary Louver Aluminum Non-Drainable Sightproof
ELF40V: Stationary Louver Aluminum Non-Drainable Sightproof
ELF40Y: Stationary Louver Aluminum Non-Drainable Sightproof
L24: Stationary Louver Steel Non-Drainable Sightproof
L26: Stationary Louver Steel Non-Drainable Sightproof
ELR: Round and Semi-Round Stationary Louver Specialty Shape Louvers
ELT: Triangular and Trapezoidal Stationary Louver Specialty Shape Louvers
ELF375DX: Stationary Louver Aluminum Drainable Stationary
ELF375DXH: Stationary Louver Aluminum Drainable Stationary
ELF445DX: Stationary Louver Aluminum Drainable Stationary
ELF445DXH: Stationary Louver Aluminum Drainable Stationary
ELF6350DMP: Stationary Louver Aluminum Drainable Stationary
ELF6375DX: Stationary Louver Aluminum Drainable Stationary
ELF6375DXH: Stationary Louver Aluminum Drainable Stationary
ELF6425DD: Stationary Louver Aluminum Drainable Stationary
ELF6811DD: Stationary Louver Aluminum Drainable Stationary
ELF811DD: Stationary Louver Aluminum Drainable Stationary
GFL800D: Stationary Louver Aluminum Drainable Stationary
BV100: Aluminum Brick Vent Aluminum Non-Drainable Stationary
BVC100: Cast Aluminum Brick Vent Aluminum Non-Drainable Stationary
ELF375X: Stationary Louver Aluminum Non-Drainable Stationary
ELF375XH: Stationary Louver Aluminum Non-Drainable Stationary
ELF6375X: Stationary Louver Aluminum Non-Drainable Stationary
ELF6375XH: Stationary Louver Aluminum Non-Drainable Stationary
ELF6811: Stationary Louver Aluminum Non-Drainable Stationary
ELF6811S: Stationary Louver Aluminum Non-Drainable Stationary
ELF811SH: Stationary Louver Aluminum Non-Drainable Stationary
ELF81S30: Stationary Louver Aluminum Non-Drainable Stationary
ELF837: Stationary Louver Aluminum Non-Drainable Stationary
GFL800: Stationary Louver Aluminum Non-Drainable Stationary
L375D: Stationary Louver Steel Drainable Stationary
L6375D: Stationary Louver Steel Drainable Stationary
L330: Stationary Louver Steel Non-Drainable Stationary
L530: Stationary Louver Steel Non-Drainable Stationary
L6811: Stationary Louver Steel Non-Drainable Stationary
L6811S: Stationary Louver Steel Non-Drainable Stationary
L811: Stationary Louver Steel Non-Drainable Stationary
L811S: Stationary Louver Steel Non-Drainable Stationary
ELF15J: Stationary Louver Thinline Stationary
ELF211: Stationary Louver Thinline Stationary
ELF211D: Stationary Louver Thinline Stationary
ET125/ET125-30: Stationary, Thinline Stationary Louver Thinline Stationary
SSAFH8: Aluminum Airfoil Blade Sunshade Sun Control Sunshades
SSEGH: Eggcrate Blade Sunshade Sun Control Sunshades
SSLBH4: Louver Blade Sunshade Sun Control Sunshades
SSRTH: Rectangular Tube Blade Sunshade Sun Control Sunshades

FIXED

Model Type Class Blade Type Frame Depth Blade Angle Free Area (48" X 48" unit) Velocity Pressure (fpm) AMCA CRP Listing Product Page Product Data Sheet Revit CSI 3 Part Spec Installation Instructions
SIGHT PROOF ALUMINUM
ELF520DD: Sightproof, Aluminum, Drainable Louver Aluminum Drainable Sightproof - DRAINABLE 5" 20° 52% 8.32 756 - G-52 X ON SPEC
ELF22V: Stationary Louver Aluminum Non-Drainable Sightproof - CHEVRON 2" 60° 28% 4.48 500 - G-52 X X X ON SPEC
ELF30V: Stationary Louver Aluminum Non-Drainable Sightproof - CHEVRON 3" 45° 56% 8.96 660 - G-52 X X X ON SPEC
ELF40V: Stationary Louver Aluminum Non-Drainable Sightproof - CHEVRON 4" 60° 35% 5.60 500 - G-52 X X X ON SPEC
ELF40Y: Stationary Louver Aluminum Non-Drainable Sightproof - INVERTED "Y" 4" 45° 33% 5.28 500 - G-52 X X X ON SPEC
SIGHT PROOF STEEL
L24: Stationary Louver Steel Non-Drainable Sightproof - CHEVRON 4" 45° 42% 6.72 400 - G-61 X X X ON SPEC
L26: Stationary Louver Steel Non-Drainable Sightproof - CHEVRON 6" 45° 47% 7.52 400 - G-61 X X X ON SPEC
SPECIALTY SHAPES ALUMINUM
ELR: Round and Semi-Round Stationary Louver Specialty Shape Louvers - VARIES 2" - 6" VARIES VARIES - G-53 X X - -
ELT: Triangular and Trapezoidal Stationary Louver Specialty Shape Louvers - VARIES 2" - 6" VARIES VARIES - G-53 X X - -
FIXED ALUMINUM
ELF375DX: Stationary Louver Aluminum Drainable Stationary - DRAINABLE 4" 37 1/2° 54% 8.64 873 AMCA certified Air and Water performance. G-42 X X X ON SPEC
ELF375DXH: Stationary Louver Aluminum Drainable Stationary - DRAINABLE HEAVY MAT'L 4" 37 1/2° 54% 8.64 873 AMCA certified Air and Water performance. - X X X ON SPEC
ELF445DX: Stationary Louver Aluminum Drainable Stationary - DRAINABLE 4" 45° 52% 8.32 1075 AMCA certified Air and Water performance. G-40 X X X ON SPEC
ELF445DXH: Stationary Louver Aluminum Drainable Stationary - DRAINABLE HEAVY MAT'L 4" 45° 52% 8.32 1075 AMCA certified Air and Water performance. - X X X ON SPEC
ELF6350DMP: Stationary Louver Aluminum Drainable Stationary - DRAINABLE 6" 35° 62% 9.92 1250 AMCA certified Air and Water performance. G-40 X X X ON SPEC
ELF6375DX: Stationary Louver Aluminum Drainable Stationary - DRAINABLE 6" 37 1/2 ° 57% 9.12 1023 AMCA certified Air and Water performance. G-42 X X X ON SPEC
ELF6375DXH: Stationary Louver Aluminum Drainable Stationary - DRAINABLE HEAVY MAT'L 6" 37 1/2 ° 57% 9.12 1023 AMCA certified Air and Water performance. - X X X ON SPEC
ELF6425DD: Stationary Louver Aluminum Drainable Stationary - CONTINUOUS DRAINABLE 6" 42 1/2° 51% 8.16 852 AMCA certified Air and Water performance. G-38 X X X ON SPEC
ELF6811DD: Stationary Louver Aluminum Drainable Stationary - DOUBLE DRAINABLE 6" 45° 44% 7.04 1080 AMCA certified Air and Water performance. G-38 X X X ON SPEC
ELF811DD: Stationary Louver Aluminum Drainable Stationary - DOUBLE DRAINABLE 4" 45° 44% 7.04 974 AMCA certified Air and Water performance. G-38 X X X ON SPEC
GFL800D: Stationary Louver Aluminum Drainable Stationary - DRAINABLE 4" 45° 45% 7.20 748 - G-50 X X X ON SPEC
BV100: Aluminum Brick Vent Aluminum Non-Drainable Stationary - ALUM BRICK VENT 4" 48° 39% 6.24 - - - X X X ON SPEC
BVC100: Cast Aluminum Brick Vent Aluminum Non-Drainable Stationary #VALUE! CAST ALUMINUM 4" 48° 39% 6.24 - - - X X X ON SPEC
ELF375X: Stationary Louver Aluminum Non-Drainable Stationary - J 4" 37 1/2 ° 54% 8.64 803 AMCA certified Air and Water performance. G-42 X X X ON SPEC
ELF375XH: Stationary Louver Aluminum Non-Drainable Stationary - J HEAVY MAT'L 4" 37 1/2 ° 54% 8.64 803 AMCA certified Air and Water performance. - X X X ON SPEC
ELF6375X: Stationary Louver Aluminum Non-Drainable Stationary - J 6" 37 1/2 ° 55% 8.80 1010 AMCA certified Air and Water performance. G-42 X X X ON SPEC
ELF6375XH: Stationary Louver Aluminum Non-Drainable Stationary - J HEAVY MAT'L 6" 37 1/2 ° 55% 8.80 1010 AMCA certified Air and Water performance. - X X X ON SPEC
ELF6811: Stationary Louver Aluminum Non-Drainable Stationary - J 6" 45° 47% 7.52 680 - G-44 X X X ON SPEC
ELF6811S: Stationary Louver Aluminum Non-Drainable Stationary - K 6" 45° 49% 7.84 680 - - X X X ON SPEC
ELF811SH: Stationary Louver Aluminum Non-Drainable Stationary - K 4" 45° 44% 7.04 707 - G-44 X X - ON SPEC
ELF81S30: Stationary Louver Aluminum Non-Drainable Stationary - K 4" 30° 53% 8.48 644 - G-44 X X X ON SPEC
ELF837: Stationary Louver Aluminum Non-Drainable Stationary - J 4" 37 1/2 ° 52% 8.32 696 AMCA certified Air and Water performance. G-44 X X X ON SPEC
GFL800: Stationary Louver Aluminum Non-Drainable Stationary - J 4" 45° 44% 7.04 707 - G-50 X X X ON SPEC
STEEL LOUVERS
L375D: Stationary Louver Steel Drainable Stationary - DRAINABLE 4" 37 1/2 ° 51% 8.16 961 AMCA certified Air and Water performance. G-56 X X X ON SPEC
L6375D: Stationary Louver Steel Drainable Stationary - DRAINABLE 6" 37 1/2 ° 54% 8.64 896 AMCA certified Air and Water performance. G-56 X X X ON SPEC
L330: Stationary Louver Steel Non-Drainable Stationary - J 4" 30° 53% 8.48 674 - G-60 X X X ON SPEC
L530: Stationary Louver Steel Non-Drainable Stationary - K 4" 30° 50% 8.00 500 - G-60 X X X ON SPEC
L6811: Stationary Louver Steel Non-Drainable Stationary - J 4" 45° 42% 6.72 668 - G-58 X X X ON SPEC
L6811S: Stationary Louver Steel Non-Drainable Stationary - K 6" 45° 51% 8.16 668 - G-58 X X X ON SPEC
L811: Stationary Louver Steel Non-Drainable Stationary - J 4" 45° 45% 7.20 725 AMCA certified Air and Water performance. G-58 X X X ON SPEC
L811S: Stationary Louver Steel Non-Drainable Stationary - K 4" 45° 45% 7.20 725 AMCA certified Air and Water performance. G-58 X X X ON SPEC
THIN LINE ALUMINUM
ELF15J: Stationary Louver Thinline Stationary - THINLINE 1.5" 45° 50% 8.00 390 - G-48 X X X ON SPEC
ELF211: Stationary Louver Thinline Stationary - THINLINE 2" 45° 42% 6.72 575 - G-48 X X X ON SPEC
ELF211D: Stationary Louver Thinline Stationary - DRAINABLE 2" 45° 38% 6.08 1197 AMCA certified Air and Water performance. G-48 X X X ON SPEC
ET125: Stationary, Thinline Stationary Louver Thinline Stationary - THINLINE 1.25" 48° 51% 8.16 127 - G-46 - - - -
ET125-30: Stationary, Thinline Stationary Louver THINLINE 30° BLADE 1.25" 30° 63% 10.08 127 - G-46 - - - -

comb & moveable

Model Type Class Blade Type Frame Depth Blade Angle Free Area (48" X 48" unit) AMCA CRP Listing Velocity Pressure fpm Product Page Product Data Sheet Revit CSI 3 Part Spec Installation Instructions
Percent Sq Ft
ELM6375DX Aluminum Drainable Adjustable - DRAINABLE 6" 37 1/2 ° 54% 8.64 AMCA certified Air and Water performance. 846 G-84 X X X ON SPEC
ELM6DW Aluminum Drainable Adjustable Warehouse Louver - DRAINABLE 6" 37 1/2 ° 48% 7.68 AMCA certified Air and Water performance. 1155 - X - X ON SPEC
ELM811D Aluminum Drainable Adjustable - DRAINABLE 4" 45° 37% 5.92 - 860 G-84 X X X ON SPEC
ELM6375X Aluminum Non-Drainable Adjustable - J 6" 37 1/2 ° 54% 8.64 AMCA certified Air and Water performance. 801 G-82 X X X ON SPEC
ELM811: Aluminum Non-Drainable Adjustable - J 4" 45° 38% 6.08 - 707 G-82 X X X ON SPEC
ELM90: Aluminum Non-Drainable Adjustable - J 6" 70° 58% 9.28 500 G-82 X X X ON SPEC
ELM90HFA Aluminum Non-Drainable Adjustable - J 6" 90° 74% 11.84 AMCA certified Air performance. 500 G-82 X - X ON SPEC
LM375D Steel Drainable Adjustable - DRAINABLE 4" 37 1/2 ° 44% 7.04 AMCA certified Air and Water performance. 1027 G-92 X X X ON SPEC
LM6375D Steel Drainable Adjustable - DRAINABLE 6" 37 1/2 ° 51% 8.16 AMCA certified Air and Water performance. 1038 G-92 X X X ON SPEC
L6745 Steel Non-Drainable Adjustable - J 6" 45° 43% 6.88 - 750 G-94 X X X ON SPEC
L745 Steel Non-Drainable Adjustable - J 4" 45° 38% 6.08 - 700 G-94 X X X ON SPEC
LM6811 Steel Non-Drainable Adjustable - J 6" 90° 76% 12.16 - 300 G-94 X X X ON SPEC
ELBD375E Automatic Exhaust Dual Combination Aluminum - DRAINABLE 6" 37 1/2 ° 45% 7.2 - 1500 G-88 X - X -
ELBD375I Automatic Intake Dual Combination Aluminum - DRAINABLE 4" 37 1/2 ° 40% 6.4 - 550 G-88 X - X -
ELC445D Aluminum Drainable Combination - DRAINABLE 4" 45° 39% 6.24 AMCA certified Air and Water performance. 974 G-86 X X X ON SPEC
ELC6375DAX Aluminum Drainable Combination - DRAINABLE WITH AIRFOIL REAR BLADE 6" 37 1/2 ° 47% 7.52 AMCA certified Air and Water performance. 1169 G-86 X X X ON SPEC
ELC6375DXD Aluminum Drainable Combination Hurricane MIAMI DADE APPROVED DRAINABLE 6" 37 1/2 ° 44% 7.04 AMCA certified Air and Water performance. 1250 G-26 X - - X NOA
ELC6375DXW Aluminum Drainable Combination - DRAINABLE 6" 37 1/2 ° 47% 7.52 AMCA certified Air and Water performance. 1169 - X - - ON SPEC
ELBD812 Aluminum Non-Drainable Combination - J 4" 45° 40% 6.4 - 2500 G-90 X X X ON SPEC
ELBD813 Aluminum Non-Drainable Combination - J 4" 45° 40% 6.4 - 2500 G-90 X X X ON SPEC
LC6375D Steel Drainable Combination - DRAINABLE 6" Front 37 1/2 ° Rear 45° 45% 7.2 AMCA certified Air and Water performance. 365 G-96 X X X ON SPEC

WDR & HURRICANE

X TREME

Model Type Class Blade Type Frame Depth Blade Angle Free Area (48" X 48" unit) AMCA CRP Listing TESTING PERFORMANCE Velocity Pressure fpm Product Page Product Data Sheet Revit CSI 3 Part Spec Installation Instructions
Percent Sq Ft
BL520DD: Louver Extreme Performance Blast Resistant Blast/Wind Driven Rain DOUBLE DRAINABLE 5" 20° 39% 6.2 - 3RD PARTY GSA OF 2, ASTM-1642 NO HAZARD RATING - G-35 X - X -
ELF375DSS: Louver Extreme Performance Snow Stopper Snow Stopper Drainable 19" 37.5° - - - 3rd Party Heat trace to help melt penetrating snow 873 G-37 x - x -
L5361: Stationary Louver Extreme Performance Sand Louver Galv steel "C" shape/Vertical 4" 90° 25% 4 - - Sand efficiency 90% ASHRAE Standard 52-76 test method - - x x x -
XP500: Aluminum Louver Extreme Performance Weather UL FEMA 361 CHEVRON 5" 45° 46% 7.29 AMCA certified Air and Water performance. FEMA 361 UL FEMA 361, ICC500 652 G-36 X - X ON SPEC
XP500S: Steel Extreme Weather Louver Extreme Performance Weather - CHEVRON 8" 45° 46% 7.29 - tested in accordance with FEMA 361 - 653 - X X X -

Penthouses

Model Type Frame Depth Blade Product Data Sheet Revit CSI 3 Part Spec Installation Instructions
PHB: Box Penthouse Box Penthouse, Aluminum or formed Steel 2" - 6" Select ELF, EME & L models X X X X
PHM: Mitered Penthouse Mitered Penthouse, Aluminum models 2" - 6" Select ELF models X X X X
PHB637HDXD: Hurricane Penthouse Hurricane Penthouse THIS WILL BE UNDER wdr & Hurricane tab

Acoustical

Model Type Class Blade Type Frame Depth Blade Angle Free Area (48" X 48" unit) AMCA CRP Listing Velocity Pressure fpm Product Page Product Data Sheet Revit CSI 3 Part Spec Installation Instructions
Percent Sq Ft
ACL1245 Stationary Acoustical Louver - Acoustical 12" 45° 29% 4.64 AMCA certified Air, Water and Sound performance. 917 G-64 X X X ON SPEC
ACL1245AF Stationary Acoustical Louver - Airfoil Blade 12" 45° 23% 3.68 AMCA certified Air, Water and Sound performance. 1126 G-66 X X X ON SPEC
ACL1245AFD Acoustical Louvers Miami-Dade Approved Airfoil Blade 12" 45° 23% 3.68 AMCA certified Air, Water and Sound performance. 1126 G-24 X X X NOA
ACL1245D Acoustical Louvers Miami-Dade Approved Acoustical 12" 45° 29% 4.64 AMCA certified Air, Water and Sound performance. 1025 G-24 X X NOA
ACL445 Stationary Acoustical Louver - Acoustical 4" 45° 30% 4.8 AMCA certified Air and Water performance. 703 G-62 X X X ON SPEC
ACL645 Acoustical Louvers - Acoustical 6" 45° 30% 4.8 AMCA certified Air and Water performance. 872 G-62 X X X ON SPEC
ACL645D Acoustical Louvers Miami-Dade Approved Acoustical 6" 45° 29% 4.64 AMCA certified Air and Water performance. 872 G-24 X X NOA
ACL845 Stationary Acoustical Louver Acoustical 8" 45° 27% 4.32 AMCA certified Air and Water performance. 838 G-64 X X X ON SPEC
ACL845AF Stationary Acoustical Louver Airfoil Blade 8" 45° 30% 4.8 AMCA certified Air and Water performance. 841 G-66 X X X ON SPEC
EAL6811 Acoustical Louvers Acoustical 6" 45° 30% 4.8 AMCA certified Air and Water performance. 1019 G-62 X X X ON SPEC
EAL6811M Adjustable Acoustical Louver ADJUSTABLE Acoustical 6" 45° 30% 4.8 AMCA certified Air and Water performance. 1250 G-62 X X X ON SPEC

SCREENS

Model Type SIGHT PROOF Blade Type Frame Depth Free Area AMCA CRP Listing Velocity Pressure fpm Product Page Product Data Sheet Revit CSI 3 Part Spec Installation Instructions
EG100: Horizontal Screen Screen Horizontal Blade - EGG CRATE 2" - 12" VARIES - - G-72 X X X ON SPEC
EV211: Horizontal Screen Screen Horizontal Blade YES INVERTED J 2" 42% - - - X - X ON SPEC
EV811: Horizontal Screen Screen Horizontal Blade YES INVERTED J 4" 44% - - G-72 X X X ON SPEC
LV811: Horizontal Screen Screen Horizontal Blade YES INVERTED J 4" 40% - - G-72 X X X ON SPEC
EV300: Vertical Screen Screen Vertical Blade YES VERTICAL HI LOW BLADES 1 3/4" 24% - - G-72 X X X ON SPEC
EV400: Vertical Screen Screen Vertical Blade - VERTICALSINGLE BLADE 5/8" 25% - - G-72 X X X ON SPEC
EV400V: Vertical Screen Screen Vertical Blade - VERTICAL "V' BLADE 1 1/2" 25% - - G-72 X X X ON SPEC
EV538: Vertical Chevron Screen Screen Vertical Blade YES VERTICAL CHEVRON 5 3/8" 45% - - G-72 X X X ON SPEC
EV700: Sightproof Vertical Screen Screen Vertical Blade YES VERTICAL HI LOW BLADES 2 1/2" 17% - - G-72 X X X ON SPEC
EV630 Horizontal Screen Screen Horizontal Blade - HORIZONTAL 6" 68% - - G-72 X - X ON SPEC

Sunshades

Standard Sunshade Construction shown, a variety of blade, outrigger and fascia options are available, contact your local Ruskin representative for additional information.

Model Outrigger Type Outrigger size Outrigger Thickness Outrigger Design Outrigger Options Fascia profile (Optional) Blade Type Blade angle Blade Spacing Outriggers Product Page Product Data Sheet Revit CSI 3 Part Spec Installation Instructions
SSAFH8: Aluminum Airfoil Blade Sunshade Sun Control Sunshades 6" 3/8" STRAIGHT Tapered bar, channel & tube Rectangle, Round, Channel, Wedge, Bullet, Quarter round & Round wedge AIRFOIL 45° 6" Available G-75 X X X Sunshade Guide
SSEGH4: Eggcrate Blade Sunshade Sun Control Sunshades 4" - 6" 3/8" STRAIGHT Tapered bar, channel & tube Rectangle, Round, Channel, Wedge, Bullet, Quarter round & Round wedge EGG CRATE 90° 2" - 12" Available G-75 X X X Sunshade Guide
SSLBH4: Louver Blade Sunshade Sun Control Sunshades 4" 3/8" STRAIGHT Tapered bar, channel & tube Rectangle, Round, Channel, Wedge, Bullet, Quarter round & Round wedge LOUVER BLADE 37.5° 5 5/32" Available G-75 X X X Sunshade Guide
SSRTH6: Rectangular Tube Blade Sunshade Sun Control Sunshades 6" 3/8" STRAIGHT Tapered bar, channel & tube Rectangle, Round, Channel, Wedge, Bullet, Quarter round & Round wedge 2" X 6" TUBE 45° 6" Available G-75 X X X Sunshade Guide
SSRTH4: Rectangular Tube Blade Sunshade Sun Control Sunshades 4" 3/8" STRAIGHT Tapered bar, channel & tube Rectangle, Round, Channel, Wedge, Bullet, Quarter round & Round wedge 1 3/4" X 4" TUBE 45° 4 1/2" Available G-75 X X X Sunshade Guide

Website Shortcut

Website Shortcut
A: Tapered Rectangular Silencer
AM: Tapered Rectangular Silencer
DM: Tapered Rectangular Silencer
SLF: Straight Rectangular Silencer
MLF: Straight Rectangular Silencer
LLF: Straight Rectangular Silencer
ELBSP: Rectangular Elbow Silencer
ELBMP: Rectangular Elbow Silencer
ELBLP: Rectangular Elbow Silencer
PRLL: Rectangular Reactive No Fiber Silencer
PRLM: Rectangular Reactive No Fiber Silencer
PRSL: Rectangular Reactive No Fiber Silencer
PRSM: Rectangular Reactive No Fiber Silencer
TRC: Tuned Resonate Chamber Silencer
AX-A: Tubular Silencer
AX-B: Tubular Silencer
AX-C: Tubular Silencer
CN-B: Tubular Silencer
CN-C: Tubular Silencer
XF-A: Axial Fan Discharge Silencer
GSV4: Grille Transfer Silencer
Airvent Transfer: Airvent Transfer
SoundChek: Modular Panels
LAS12: Acoustical Louver
LAS12AF: Acoustical Louver
LAS4: Acoustical Louver
LAS6: Acoustical Louver
LAS8: Acoustical Louver
LAS8AF: Acoustical Louver

Silencers

RECTANGULAR SILENCERS

MODELS RATED VELOCITY IL SP MINIMUM SIZE MAXIMUM SIZE SHELL MATL. BAFFLE MATL. ACOUSTIC FILL
A Low High Standard 6” x 6” (152 x 152) 48” x 48” (1219 x 1219) 22 gauge (.9) galv. steel 22 gauge (.9) perf galv steel Glass Fiber
6” x 6” (152 x 152) 36” x 42” (914 x 1067) 22 gauge (.9) galv. steel 22 gauge (.9) perf galv steel Glass Fiber
AM Medium Medium Medium 6” x 6” (152 x 152) 48” x 48” (1219 x 1219) 22 gauge (.9) galv. steel 22 gauge (.9) perf galv steel Glass Fiber
6” x 6” (152 x 152) 36” x 42” (914 x 1067) 22 gauge (.9) galv. steel 22 gauge (.9) perf galv steel Glass Fiber
DM High Low Low 6” x 6” (152 x 152) 48” x 48” (1219 x 1219) 22 gauge (.9) galv. steel 22 gauge (.9) perf galv steel Glass Fiber
6” x 6” (152 x 152) 36” x 42” (914 x 1067) 22 gauge (.9) galv. steel 22 gauge (.9) perf galv steel Glass Fiber
SLF Low High Standard 6” x 6” (152 x 152) 36” x 36” (914 x 914) 22 gauge (.9) galv. steel 22 gauge (.9) perf galv steel Glass Fiber
MLF Medium Medium Medium 6” x 6” (152 x 152) 36” x 36” (914 x 914) 22 gauge (.9) galv. steel 22 gauge (.9) perf galv steel Glass Fiber
LLF High Low Low 6” x 6” (152 x 152) 36” x 36” (914 x 914) 22 gauge (.9) galv. steel 22 gauge (.9) perf galv steel Glass Fiber
PRSL Low High Standard 9” x 9” (229 x 229) 36” x 36” (914 x 914) 22 gauge (.9) galv. steel 26 gauge (.6) perf galv steel No Fill
PRSM Low Medium Standard 9” x 9” (229 x 229) 36” x 36” (914 x 914) 22 gauge (.9) galv. steel 26 gauge (.6) perf galv steel No Fill
PRLM Medium Medium Medium 9” x 9” (229 x 229) 36” x 36” (914 x 914) 22 gauge (.9) galv. steel 26 gauge (.6) perf galv steel No Fill
PRLL High Low Low 9” x 9” (229 x 229) 36” x 36” (914 x 914) 22 gauge (.9) galv. steel 26 gauge (.6) perf galv steel No Fill
TRC Medium Medium Medium 6” x 6” (152 x 152) 48” x 48” (1219 x 1219) 22 gauge (.9) galv. steel 26 gauge (.6) perf galv steel No Fill
6” x 6” (152 x 152) 36” x 42” (914 x 1067) 22 gauge (.9) galv. steel 26 gauge (.6) perf galv steel No Fill

ELBOW SILENCERS

MODELS RATED VELOCITY IL SP MINIMUM SIZE MAXIMUM SIZE SHELL MATL. BAFFLE MATL. ACOUSTIC FILL
ELBSP Low High Standard 6” x 6” (152 x 152) 48” x 48” (1219 x 1219) 18 gauge (1.3) galv. steel 22 gauge (.9) perf galv steel Glass Fiber
ELBMP Medium Medium Medium 6” x 6” (152 x 152) 48” x 48” (1219 x 1219) 18 gauge (1.3) galv. steel 22 gauge (.9) perf galv steel Glass Fiber
ELBLP High Low Low 6” x 6” (152 x 152) 36” x 42” (914 x 1067) 22 gauge (.9) galv. steel 22 gauge (.9) perf galv steel Glass Fiber

TUBULAR SILENCERS

MODELS MAX RATED VELOCITY IL SP MINIMUM SIZE MAXIMUM SIZE LENGTH SHELL MATL. BAFFLE MATL. ACOUSTIC FILL
AXA 3000 High Standard 10” dia. (254) 78” dia. (1981) 2X dia. 36”min (914) 18 gauge (1.3) galv. steel 22 gauge (.9) perf galv steel Glass Fiber
AXB 4000 Medium Medium 10” dia. (254) 78” dia. (1981) 2X dia. 36”min (914) 18 gauge (1.3) galv. steel 22 gauge (.9) perf galv steel Glass Fiber
AXC 5500 Low Low 10” dia. (254) 78” dia. (1981) 2X dia. 36”min (914) 18 gauge (1.3) galv. steel 22 gauge (.9) perf galv steel Glass Fiber
CNB 2500 Medium Medium 10” dia. (254) 28” dia. (711) 3X dia. 48”min (1219) 22 gauge (.9) galv. steel 22 gauge (.9) perf galv steel Glass Fiber
29” dia. (737) 48” dia. (1219) 3X dia. 18 gauge (1.3) galv. steel 22 gauge (.9) perf galv steel Glass Fiber
49” dia. (1245) 78” dia. (1981) 3X dia. 16 gauge (1.6) galv. steel 22 gauge (.9) perf galv steel Glass Fiber
XFA 6000 Medium Low 24” dia. (610) 84” dia (2134) 49” – 118” 18 gauge (1.3) galv. steel 22 gauge (.9) perf galv steel Glass Fiber

GRILLE SILENCER

MODELS MAX RATED VELOCITY DEPTH MINIMUM SIZE MAXIMUM SIZE SHELL MATL. BAFFLE MATL. ACOUSTIC FILL
GSV4 500 4” (102) 6” x 6” (152 x 152) 48” x 48” (1219 x 1219) 22 gauge (.9) galv. steel 22 gauge (.9) perf galv steel Glass Fiber

TRANSFER SILENCER SPECIFICATIONS

OPENING LENGTH
MODELS MAX RATED VELOCITY W x H D CT L, Type C L, Type H L, Type W S SHELL MATL. BAFFLE MATL. ACOUSTIC FILL
D22 500 -22 x3 -24 22 gauge (.9) galv. steel 22 gauge (.9) perf galv steel Glass Fiber
(559 x 76) (610)
CT12 450 10 ½ x 8 22 ½ 22 gauge (.9) galv. steel 22 gauge (.9) perf galv steel Glass Fiber
(267x203) (572)
CT22 900 22 ½ x 8 22 ½ 22 gauge (.9) galv. steel 22 gauge (.9) perf galv steel Glass Fiber
(572x203) (572)
L414 325 14 x 6 48 42 48 22 gauge (.9) galv. steel 22 gauge (.9) perf galv steel Glass Fiber
(356x152) (1,219) (1,067) (1,219)
L430 700 30 x 6 48 42 48 22 gauge (.9) galv. steel 22 gauge (.9) perf galv steel Glass Fiber
(762x152) (1,219) (1,067) (1,219)
L442 950 42 x 6 48 42 48 22 gauge (.9) galv. steel 22 gauge (.9) perf galv steel Glass Fiber
(1067x152) (1,219) (1,067) (1,219)
L614 450 14 x 8 48 40 48 22 gauge (.9) galv. steel 22 gauge (.9) perf galv steel Glass Fiber
(356x203) (1,219) (1,016) (1,219)
L630 950 30 x 8 48 40 48 22 gauge (.9) galv. steel 22 gauge (.9) perf galv steel Glass Fiber
(762x203) (1,219) (1,016) (1,219)
L642 1400 42 x 8 48 40 48 22 gauge (.9) galv. steel 22 gauge (.9) perf galv steel Glass Fiber
(1067x203) (1,219) (1,016) (1,219)
L814 650 14 x 10 48 38 48 22 gauge (.9) galv. steel 22 gauge (.9) perf galv steel Glass Fiber
(356x203) (1,219) (965) (1,219)
L830 1400 30 x 10 48 38 48 22 gauge (.9) galv. steel 22 gauge (.9) perf galv steel Glass Fiber
(762x254) (1,219) (965) (1,219)
L842 1900 42 x 10 48 38 48 22 gauge (.9) galv. steel 22 gauge (.9) perf galv steel Glass Fiber
(1067x254) (1,219) (965) (1,219)
S76 250 6 x 6 13 22 gauge (.9) galv. steel 22 gauge (.9) perf galv steel Glass Fiber
(152x152) (330)
S78 350 8 x 6 19 22 gauge (.9) galv. steel 22 gauge (.9) perf galv steel Glass Fiber
(203x152) (483)

Panels

MODULAR PANELS

MODELS THICKNESS STC NRC EXTERIOR SKIN INTERIOR SKIN SHELL MATL. U-FACTOR ACOUSTIC FILL FLAME SPREAD SMOKE DEVELOPED FUEL CONTRIBUTED
Panels 4" (102) 43 1.1 18ga (1.3) Solid galv steel 22ga (.9) Perforated 22 gauge (.9) galv. steel 0.07 Mineral Wool 15 0 0
2" (51) 35 1.0 18ga (1.3) Solid galv steel 22ga (.9) Perforated 22 gauge (.9) galv. steel 0.10 Mineral Wool 15 0 0

LAS Louvers

ACOUSTICAL LOUVER SPECIFICATIONS

MODELS FRAME MTL. FRAME DEPTH EXTERIOR BLADE MTL. INTERIOR BLADE MTL. BLADE ANGLE BLADE CENTERS BIRD SCREEN ACOUSTIC FILL
LAS4 16 gauge (1.6) galv. steel 4” (102) 18 gauge (1.3) galv. steel 22 gauge (.9) perf. galv. steel 45° 6” (152) ½”x19 gauge (13x1.1) galv. steel Mineral Wool
LAS6 16 gauge (1.6) galv. steel 6” (152) 18 gauge (1.3) galv. steel 22 gauge (.9) perf. galv. steel 45° 6” (152) ½”x19 gauge (13x1.1) galv. steel Mineral Wool
LAS8 16 gauge (1.6) galv. steel 8” (203) 18 gauge (1.3) galv. steel 22 gauge (.9) perf. galv. steel 45° 8” (203) ½”x19 gauge (13x1.1) galv. steel Mineral Wool
LAS8AF 16 gauge (1.6 galv. steel 8” (203) 18 gauge (1.3) galv. steel 22 gauge (.9) perf. galv. steel 45° 8” (203) ½”x19 gauge (13x1.1) galv. steel Mineral Wool
LAS12 16 gauge (1.6 galv. steel 12” (305) 18 gauge (1.3) galv. steel 22 gauge (.9) perf. galv. steel 45° 12” (305) ½”x19 gauge (13x1.1) galv. steel Mineral Wool
LAS12AF 16 gauge (1.6 galv. steel 12” (305) 18 gauge (1.3) galv. steel 22 gauge (.9) perf. galv. steel 45° 12” (305) ½”x19 gauge (13x1.1) galv. steel Mineral Wool

Single Standalone

Model Description Unit Depth Maximum Velocity (FPM) Factory Standard Controls
ZPD15 Electronic Zone Pulse Damper 3" 2000 Modulating Actuator & RJ11 Connector
ZPD25 Round Electronic Zone Pulse Damper 6" 2000
ZRC020 Hand-Held Remote Control for Use with ZPD15 and ZPD25 Zone Pulse Dampers 2" N/A RJ11 Cable
ZCD35 Multiple Blade Cable Driven Zone Control Damper 5" 2000 3' Cable
ZMDRS25 Round Cable Driven Zone Control Damper 6" 1500 3' Cable
CDRAMS Round Control Damper with Integral Air Measuring Station Varies 4000 Transducer
ZCD36 Single Mode Temperature Control Square Damper (Cooling or Heating) 5" 2000 Floating Actuator & Wall Thermostat
ZCDR25 Single Mode Temperature Control Round Damper (Cooling or Heating) 7" 2000 Floating Actuator & Wall Thermostat
ZCDRVAV Auto Change Over Round Zone Control Damper (Cooling and Heating) 7" 2000 Modulating Actuator, Wall thermostat, & Duct Sensor
ZCDVAV Auto Change Over Square Zone Control Damper (Cooling and Heating) 3-1/2" 2000 Modulating Actuator, Wall thermostat, & Duct Sensor
ZEBD15 Rectangular Single-Blade Galvanized Steel Zone Electronic Bypass Damper 3" 2000 Modulating Actuator, Static Pressure Controller, Pressure Probe
ZEBD36 Rectangular Multi-Blade Galvanized Steel Zone Electronic Bypass Damper 5" 2000
ZEBD25 Round Galvanized Steel Zone Electronic Bypass Damper Varies 2000

Both

Model Description Unit Depth Maximum Velocity (FPM) Factory Standard Controls
ZDD25 Diffuser with Integrated Zone Damper 6-5/8" 665 Modulating Actuator with Logic Board, Duct Sensor, and Wall Thermostat
ZDR25 Round Galvanized Zone Damper Varies 2000
ZDS15 Rectangular Single-Blade Galvanized Steel Zone Damper 3" 2000
ZD36 Rectangular Multi-Blade Galvanized Steel Zone Damper 5" 2000

Z2000 System Solution

Model Description Unit Depth Maximum Velocity (FPM) Factory Standard Controls
Z2000 Commercial Zone Control Panel System 2" N/A Z2000 Control Panel
Z2000DAT Discharge Air Temperature Sensor 7-3/8" N/A N/A
Z2000RT Zone Thermostat 7/8" N/A N/A
Z2000NS Zone Night Setback Thermostat 7/8" N/A N/A
ZBBD25 Round Galvanized Steel Zone Barometric Bypass Damper Varies 2000 Counterweight
