Louver and Architectural Solutions

ELF6375DXD

Miami-Dade County Approved Drainable Stationary Louver
Overview
Product Features

The ELF6375DXD Stationary Louver is Miami-Dade County Approved. It has a 6" deep frame and a 37 1/2 degree blade angle. It features:

  • 57% free area
  • High performance frame system with drainable head collects and removes water to provide excellent water penetration performance
  • Aluminum construction for low maintenance and high resistance to corrosion
  • All welded construction
  • Miami-Dade NOA #24-0605.04
  • Florida Product Approval number FL#21829.8
  • Texas Department of Insurance (TDI) Listed – LVR-10

Additional Resources
Product Data/Submittal (PDF)
Brochure
Select/Size a Louver
CSI 3-Part Guide Specification (RTF)
Installation
Ruskin Louver Installation Guides Reference Sheet- Reference the louver model in the matrix and download the applicable installation guides

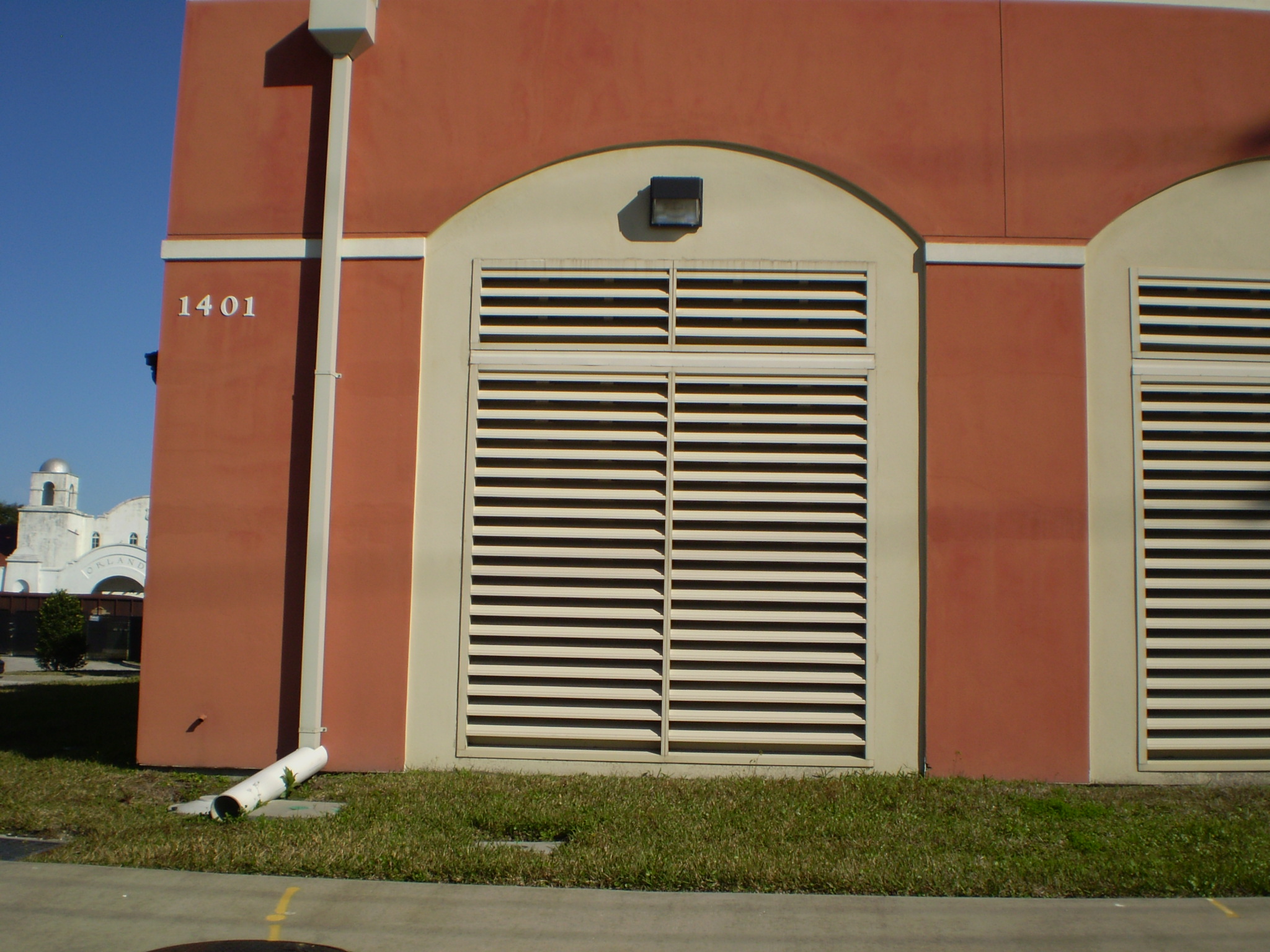

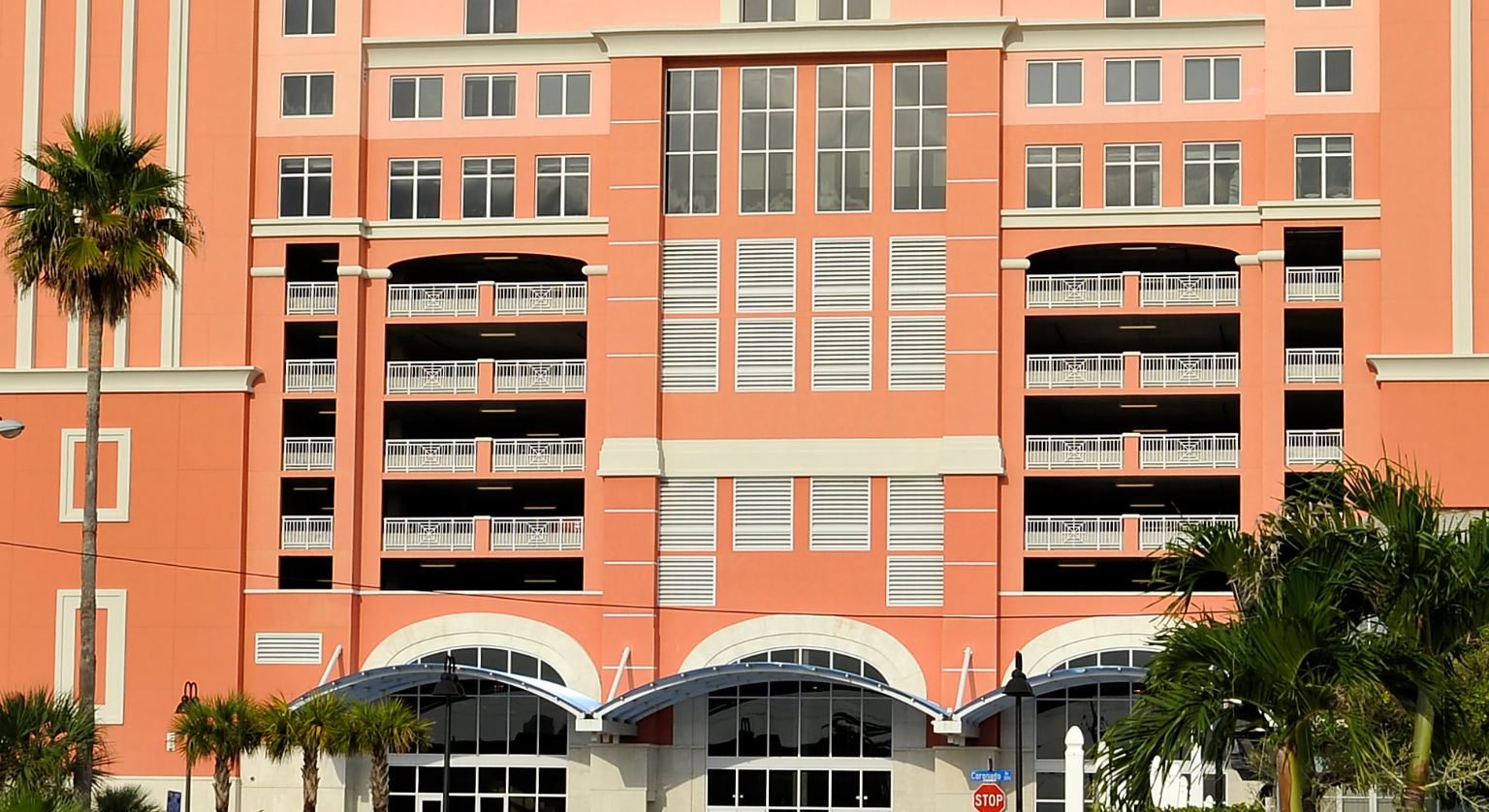

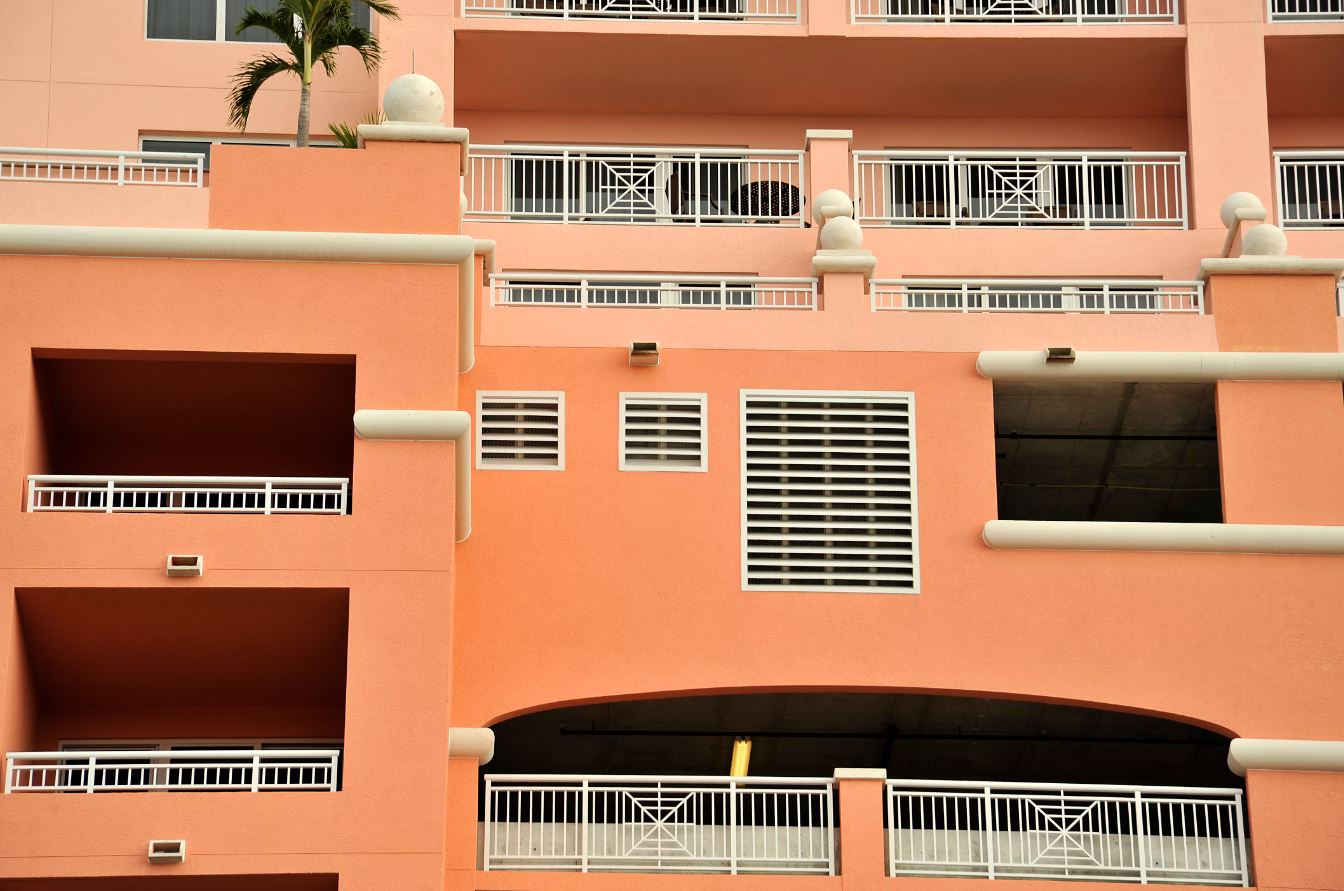

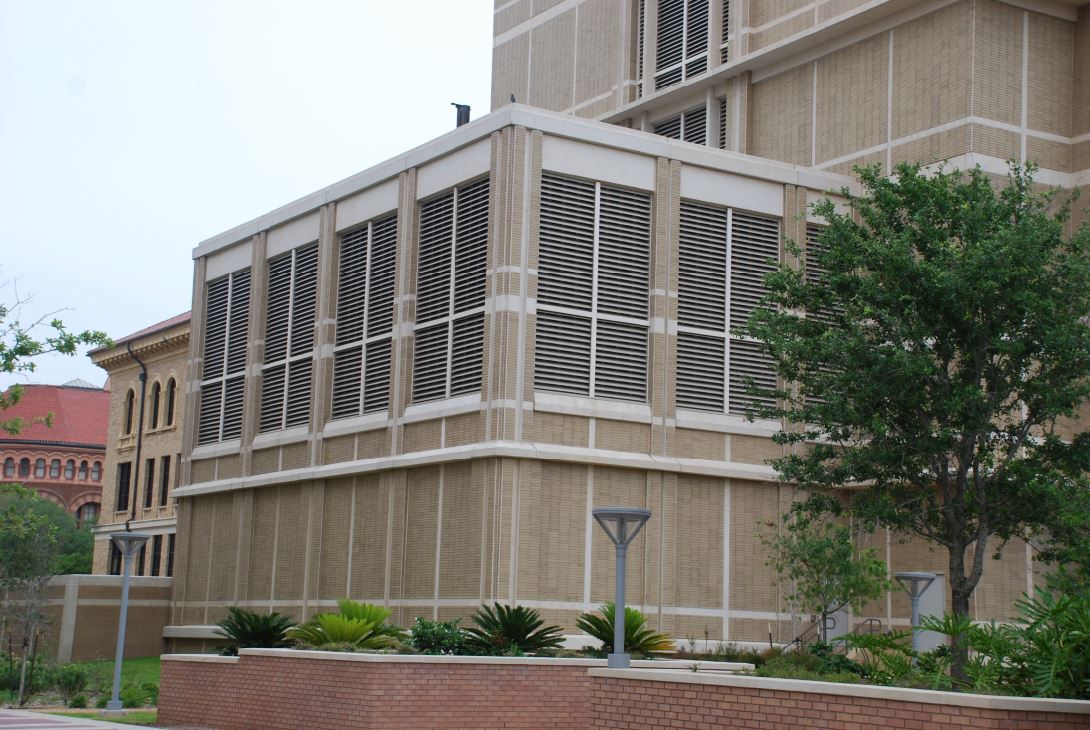

Louver Gallery
CAD Drawing
Quick Spec
3D Revit® Files
Engineering Report
Finishes
Texas Department of Insurance (TDI) Product Evaluation
Warranty
Line Card
